Product details

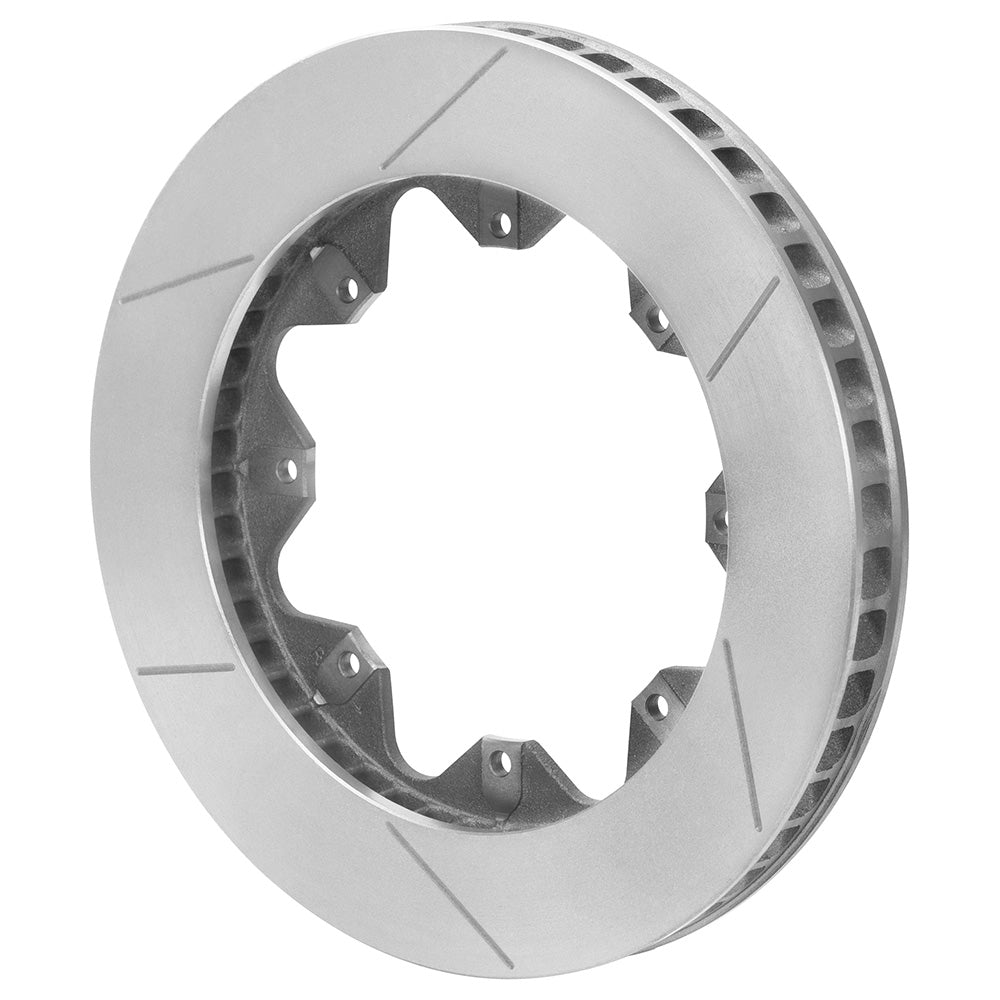

The slotted GT face gives this right-hand 12.19-inch rotor its friction-surface treatment. Wilwood balances the 48-vane Spec-37 ring; this version is supplied without factory burnishing and needs the appropriate pad-and-rotor bedding procedure. Wilwood Engineering is based in Camarillo, California and was founded by Bill Wood in 1977. It designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. The range covers calipers, brake rotors, master cylinders, valves, fittings and brake lines, all of which require selection around the full brake system rather than an isolated dimension.
Technical Details
- Manufacturer part number: 160-11839
- Diameter and thickness: 12.19 inches diameter x 1.25 inches wide
- Ring material: Spec-37 Iron
- Face pattern and coating: GT Slotted; Plain
- Internal layout: 48 CV; curved
- Mounting direction: Right-hand
- Balancing and burnishing: Factory burnished no; balanced yes
- Opposite-side component, ordered separately: 160-11840
- Rotor-to-hat/hub attachment circle: 8 x 7.00 inches
- Attachment hole size or thread: 0.316 inches
- Center / lug registration: 6.38 inches
- Far-side inside diameter: 8.41 inches
- Approximate component weight: 12.70 lb
- Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate
Fitment & Compatibility
Installation requires a hat or hub designed for the 6.38-inch rotor register and 8 x 7.00-inch attachment. Verify wheel clearance around the complete caliper, along with the rotor's 1.25-inch width. The ring alone does not define a direct-fit vehicle or axle application. Select pads and operating duty to suit the rotor material and the intended brake system.
Manufacturer reference: Wilwood rotor specifications
PMB Performance can help you identify the matching brake components, drawing on over 20 years of experience. Include the current kit number and mounting measurements when requesting a fitment check.
