Product details

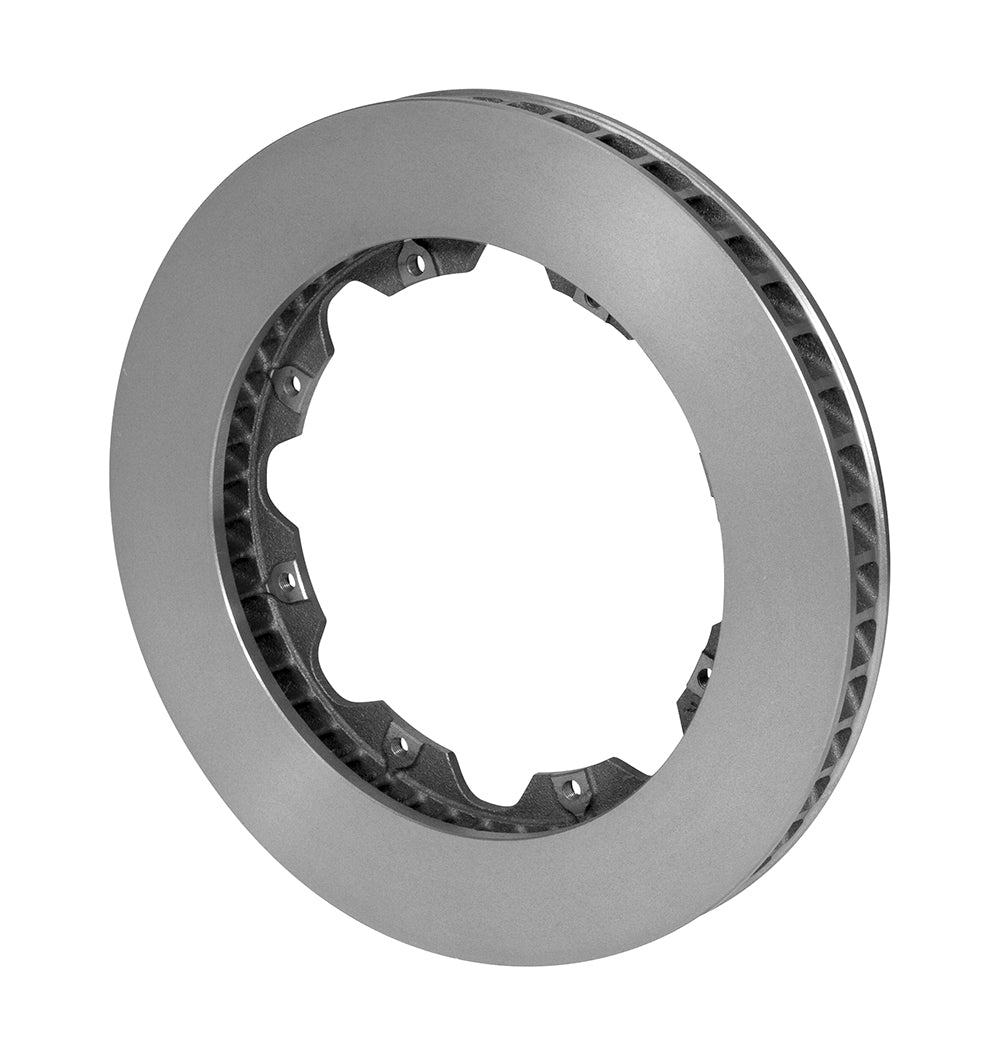

A left-hand curved-vane layout directs installation of this plain-face HD rotor. The heavy 1.25-inch section, 12.19-inch diameter and eight-bolt flange define its fit independently of the vehicle's wheel-lug pattern. Founded by Bill Wood in 1977, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its calipers and brake rotors work alongside its master cylinders, valves, fittings and brake lines, with each individual component selected according to the complete system's requirements.
Technical Details
- Manufacturer part number: 160-11836
- Outside diameter / width: 12.19 inches diameter x 1.25 inches wide
- Material specification: Spec-37 Iron
- Friction surface / finish: Plain Face; Plain
- Ventilation: 48 CV; curved
- Mounting direction: Left-hand
- Preparation: Balanced: no; factory burnished: no
- Opposite-side component, ordered separately: 160-11835
- Rotor-to-hat/hub attachment circle: 8 x 7.00 inches
- Attachment hole size or thread: 0.316 inches
- Center registration: 6.38 inches
- Far-side inside diameter: 8.41 inches
- Approximate weight: 12.70 lb
- Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate
Fitment & Compatibility
This ring is a component of a matched brake system. Confirm 1.25-inch rotor clearance through the caliper, the 12.19-inch radial envelope and the separate hat's 8 x 7.00-inch attachment. Its 6.38-inch registration must locate concentrically on the specified mounting hardware. Select pads and operating duty to suit the rotor material and the intended brake system.
Manufacturer reference: Wilwood rotor specifications
Over 20 years of brake and parts experience support PMB Performance's fitment assistance. We can help assess the specified rotor against the hardware already on the vehicle.
