Product details

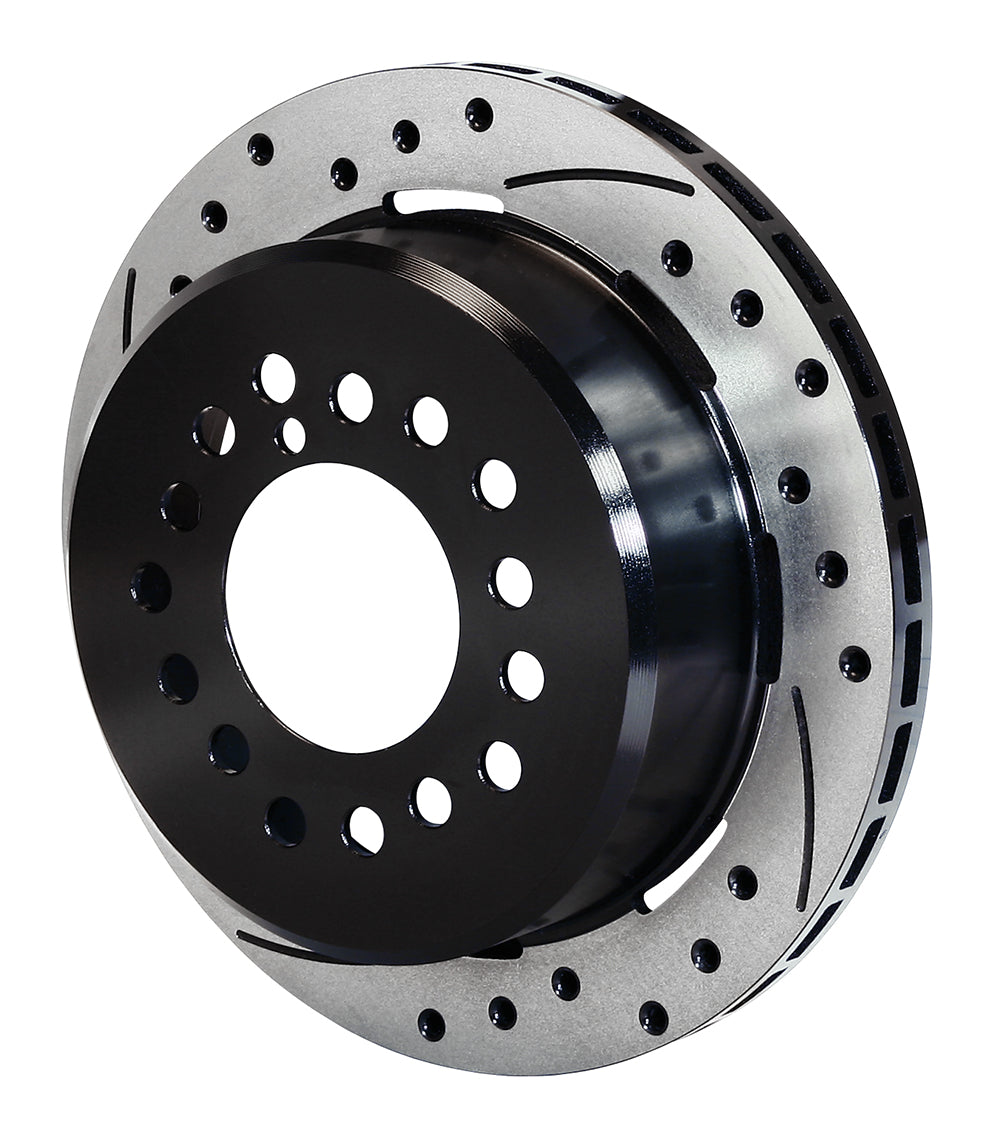

A deep 2.32-inch hat carries this right-hand 11.00-inch SRP rotor over the matching rear parking-brake assembly. Drilling, face slots and black electrocoat distinguish it from the plain-face version with the same basic mounting envelope. Wilwood Engineering, established by Bill Wood in 1977 and based in Camarillo, California, designs and manufactures disc brake systems. Its component range spans brake rotors and calipers alongside master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. The complete brake system governs which components belong together.
Technical Details
- Manufacturer part number: 160-11376-BK
- Rotor size: 11.00 inches diameter x 0.81 inches wide
- Rotor material: Iron
- Face and finish: SRP Drilled & Slotted; Black electrocoat
- Vanes: 32 vanes
- Mounting direction: Right-hand
- Factory condition: Factory burnished no; balanced no
- Opposite-side component, ordered separately: 160-11377-BK
- Hat wheel-stud clearance pattern: 5 x 4.50/4.75/5.00 inches
- Stud clearance-hole sizes: 0.52 inches
- Center / lug registration: 3.06 inches
- Far-side inside diameter: 8.38 inches
- Hat offset: 2.320 inches
- Internal parking-drum diameter: 7.24 inches
- Inside clearance diameter: 7.16 inches
- Hat mounting-face thickness: 0.18 inches
- Approximate component weight: 12.30 lb
- Quantity: one rotor with integral hat; separate hub, pads, calipers, mounting hardware and any parking-brake mechanism are not included
Fitment & Compatibility
Match this deeper 2.32-inch hat to the specified low-profile rear parking-brake assembly. Its 11.00-inch ring and 3.06-inch center differ from other offset/register versions. Separately available register adapters cover specified axle-register sizes from 2.00 to 2.86 inches; the hub and parking mechanism are not included.
Manufacturer reference: Wilwood rotor specifications
Contact PMB Performance with the rotor and brake-system details for fitment assistance informed by more than 20 years of experience.
