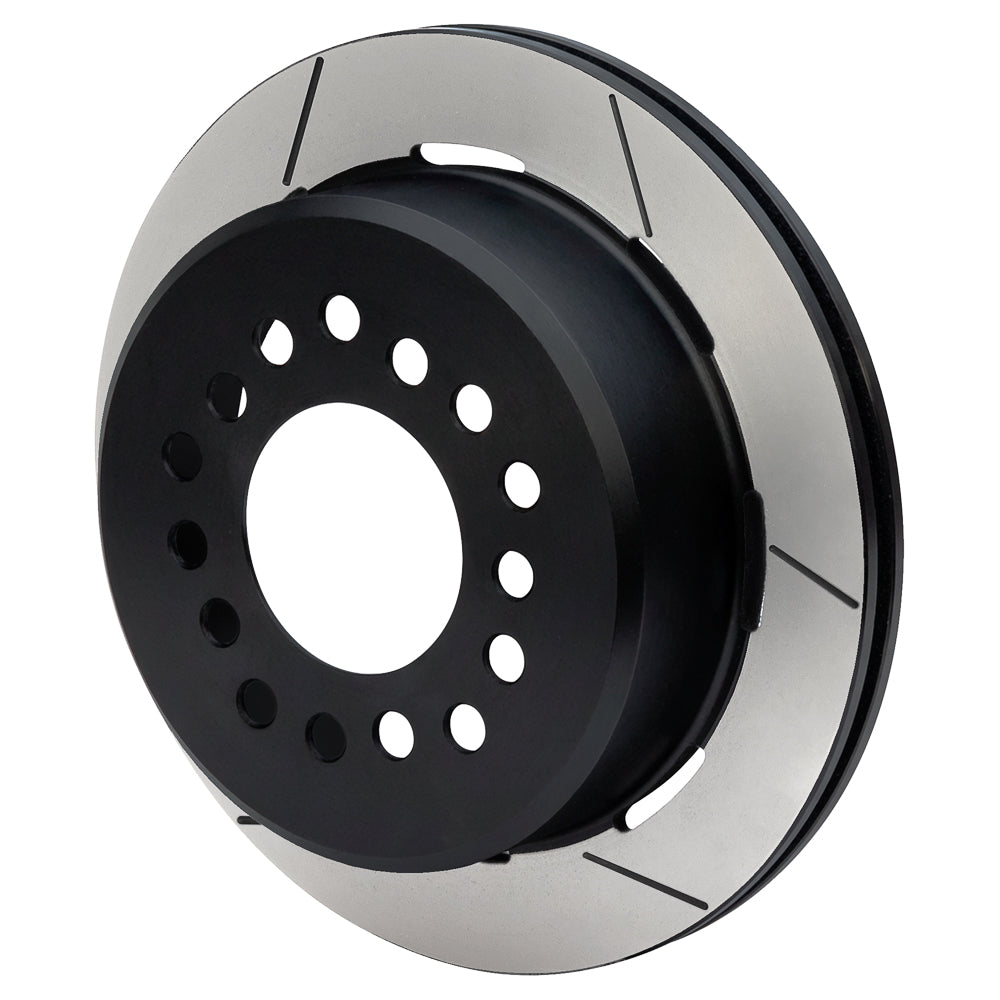

Wilwood Rear 11.00-inch GTB Slotted Rotor with Black Finish and 2.32-inch Offset

GT slots provide the friction-face treatment on this deeper-offset rear rotor, and black electrocoat protects the iron casting. The 2.32-inch hat position and 7.24-inch internal drum must agree with the rear kit's bracket and parking-brake shoe arrangement. This component comes from Wilwood Engineering, founded by Bill Wood in 1977 and based in Camarillo, California. Wilwood designs and manufactures disc brake systems, including calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications, with compatibility determined by the complete brake assembly.

Technical Details

• Manufacturer part number: 160-11365-GTB
• Outside diameter / width: 11.00 inches diameter x 0.81 inches wide
• Material specification: Iron
• Friction surface / finish: GT Slotted; Black electrocoat
• Ventilation: 32 vanes; straight
• Mounting direction: Non-directional
• Preparation: Balanced: no; factory burnished: no
• Hat wheel-stud clearance pattern: 5 x 4.50/4.75/5.00 inches
• Stud clearance-hole sizes: 0.52 inches
• Center registration: 3.06 inches
• Far-side inside diameter: 8.38 inches
• Hat offset: 2.320 inches
• Internal parking-drum diameter: 7.24 inches
• Inside clearance diameter: 7.16 inches
• Hat mounting-face thickness: 0.18 inches
• Approximate weight: 12.40 lb
• Quantity: one rotor with integral hat; separate hub, pads, calipers, mounting hardware and any parking-brake mechanism are not included

Fitment & Compatibility

Match this deeper 2.32-inch hat to the specified low-profile rear parking-brake assembly. Its 11.00-inch ring and 3.06-inch center differ from other offset/register versions. Separately available register adapters cover specified axle-register sizes from 2.00 to 2.86 inches; the hub and parking mechanism are not included.

Manufacturer reference: Wilwood rotor specifications

For help identifying the correct replacement, share the installed brake package with PMB Performance. Our team draws on over 20 years of experience with brake components and fitment.
