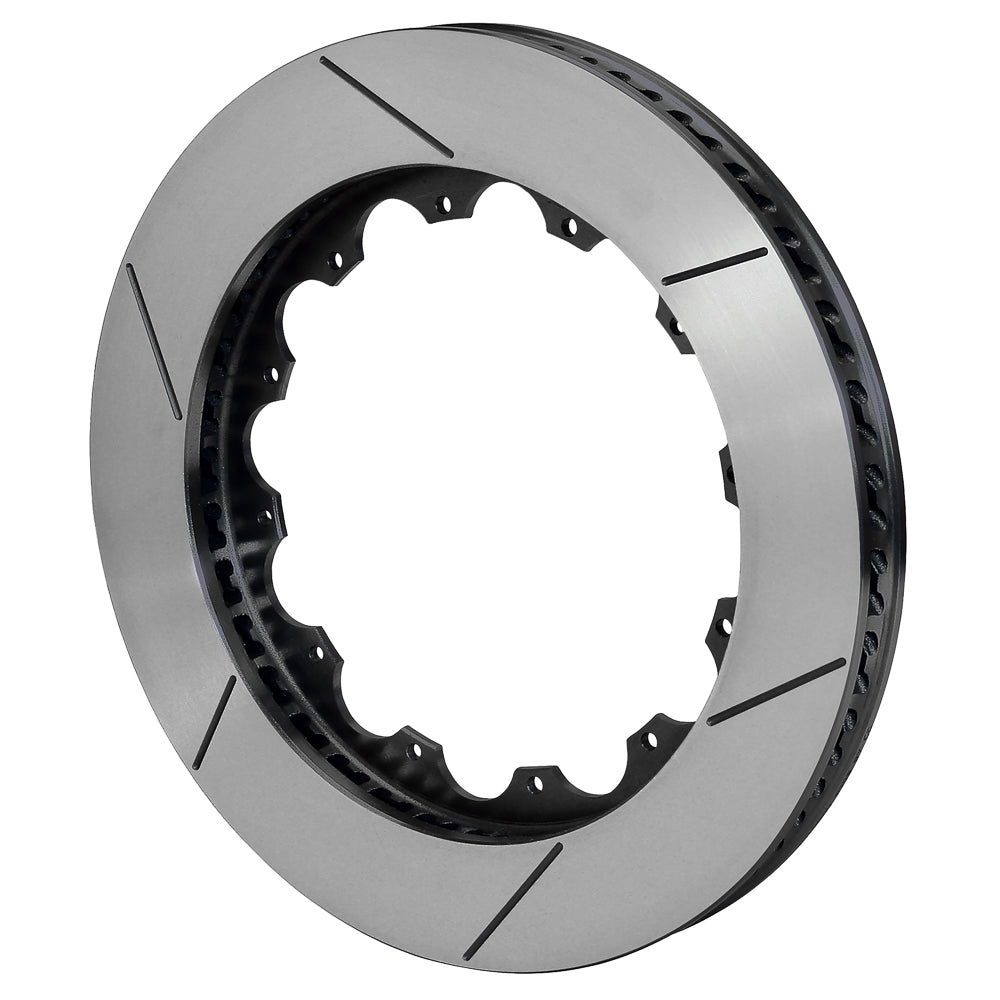

Wilwood Left GTB Black Rotor with 14.25-inch Slotted Face and 1.25-inch Width

A black-finished left GTB rotor completes the matching heavy-wall configuration without adding a hat to the purchase. The 1.25-inch-wide ring is dynamically balanced and must retain the intended left-hand installation orientation. Founded by Bill Wood in 1977, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its calipers and brake rotors work alongside its master cylinders, valves, fittings and brake lines, with each individual component selected according to the complete system's requirements.

Technical Details

• Manufacturer part number: 160-11316-GTB
• Outside diameter / width: 14.25 inches diameter x 1.25 inches wide
• Material specification: Spec-37 Iron
• Friction surface / finish: GT Slotted; Black electrocoat
• Ventilation: 72 CV; curved
• Mounting direction: Left-hand
• Preparation: Balanced: yes; factory burnished: no
• Opposite-side component, ordered separately: 160-11315-GTB
• Rotor-to-hat/hub attachment circle: 12 x 8.75 inches
• Attachment hole size or thread: 0.251 inches
• Center registration: 8.25 inches
• Far-side inside diameter: 10.00 inches
• Approximate weight: 18.80 lb
• Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate

Fitment & Compatibility

For an assembly designed around a 14.25 x 1.25-inch friction ring. Use the correct rotor fasteners and hat, checking both the 12 x 8.75-inch attachment circle and the 8.25-inch registration. Determine axle suitability from the complete brake kit, not from the rotor's diameter. Select pads and operating duty to suit the rotor material and the intended brake system.

Manufacturer reference: Wilwood rotor specifications

Over 20 years of brake and parts experience support PMB Performance's fitment assistance. We can help assess the specified rotor against the hardware already on the vehicle.
