Product details

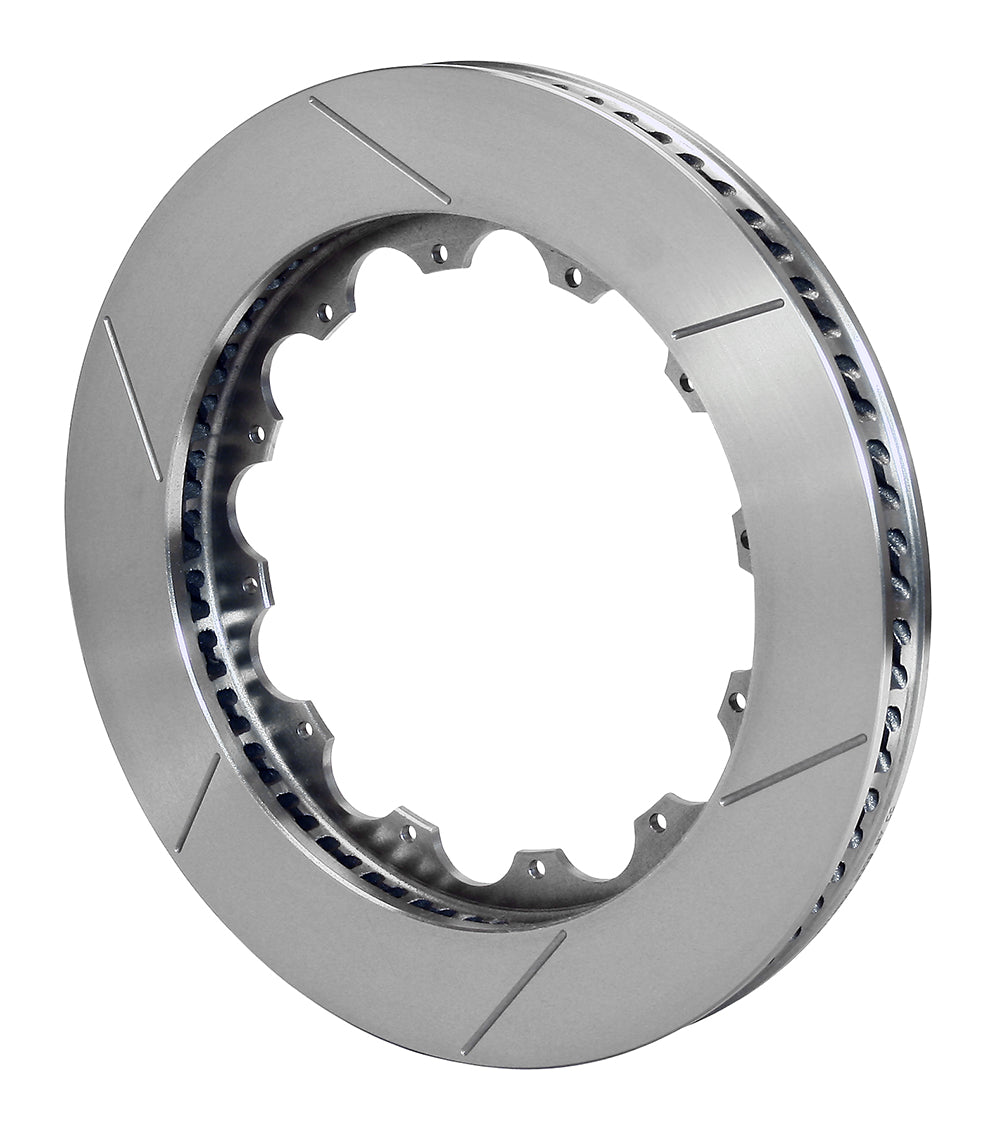

The left-hand member of this GT pair brings a 14.25-inch slotted friction ring to a compatible 1.25-inch-width caliper system. Its balanced Spec-37 construction uses 72 curved vanes and a twelve-bolt mounting flange. For this rotor, the manufacturer is Wilwood Engineering, founded in 1977 by Bill Wood and based in Camarillo, California. Wilwood designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Its motorsport, street-performance and specialized products are selected to satisfy the complete brake system's requirements.
Technical Details
- Manufacturer part number: 160-11316
- Rotor size: 14.25 inches diameter x 1.25 inches wide
- Rotor material: Spec-37 Iron
- Face and finish: GT Slotted; Plain
- Vanes: 72 CV; curved
- Mounting direction: Left-hand
- Factory condition: Factory burnished no; balanced yes
- Opposite-side component, ordered separately: 160-11315
- Rotor-to-hat/hub attachment circle: 12 x 8.75 inches
- Attachment hole size or thread: 0.251 inches
- Center / lug registration: 8.25 inches
- Far-side inside diameter: 10.00 inches
- Approximate component weight: 18.80 lb
- Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate
Fitment & Compatibility
The 1.25-inch working width must suit the caliper, while the hat centers the ring on its 8.25-inch register. Check the 12 x 8.75-inch attachment and radial pad coverage before installation. Vehicle make or wheel pattern alone cannot identify a replacement rotor ring. Select pads and operating duty to suit the rotor material and the intended brake system.
Manufacturer reference: Wilwood rotor specifications
Contact PMB Performance with the rotor and brake-system details for fitment assistance informed by more than 20 years of experience.
