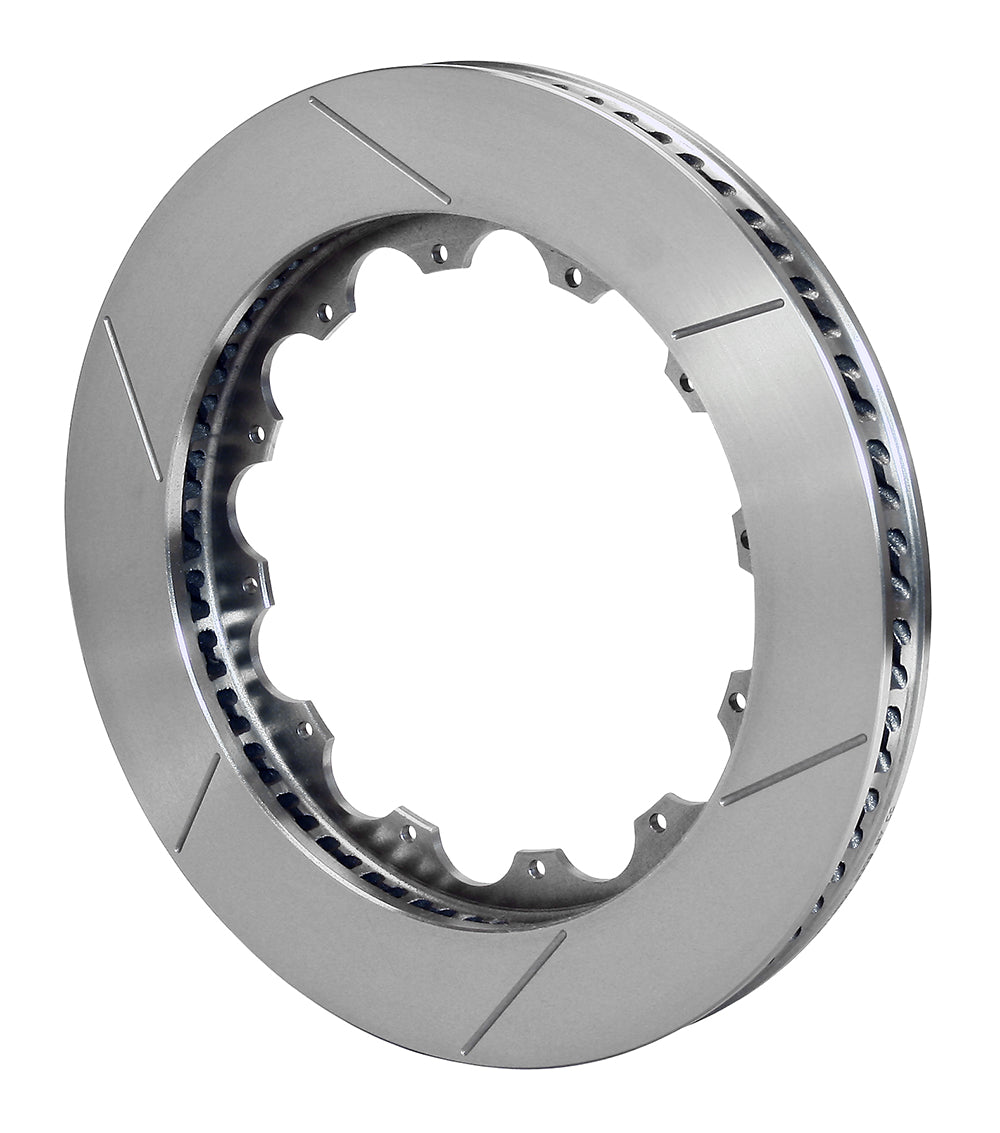

Wilwood Right GT Heavy-Wall Rotor, 14.25 x 1.25-inch with 72 Curved Vanes

A 1.25-inch heavy-wall Spec-37 casting underpins this right-hand GT ring. Its slotted face and 72 curved vanes make it a suitable candidate for high-temperature systems after the 14.25-inch diameter, mounting geometry and pad sweep are matched. Bill Wood established Wilwood Engineering in 1977; the company is based in Camarillo, California and designs and manufactures disc brake systems. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form its range for motorsport, street-performance and specialized applications. Compatibility depends on selecting those parts for the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 160-11315
• Diameter and thickness: 14.25 inches diameter x 1.25 inches wide
• Ring material: Spec-37 Iron
• Face pattern and coating: GT Slotted; Plain
• Internal layout: 72 CV; curved
• Mounting direction: Right-hand
• Balancing and burnishing: Factory burnished no; balanced yes
• Opposite-side component, ordered separately: 160-11316
• Rotor-to-hat/hub attachment circle: 12 x 8.75 inches
• Attachment hole size or thread: 0.251 inches
• Center / lug registration: 8.25 inches
• Far-side inside diameter: 10.00 inches
• Approximate component weight: 18.80 lb
• Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate

Fitment & Compatibility

Use the complete brake kit to establish axle location, caliper spacing and wheel clearance. This 14.25-inch rotor needs a 12 x 8.75-inch mounting interface with 8.25-inch centering. Pad compound and sweep must be suitable for the ring material and 1.25-inch working section. Select pads and operating duty to suit the rotor material and the intended brake system.

Manufacturer reference: Wilwood rotor specifications

PMB Performance has over 20 years of experience helping customers select brake components. Supplying the kit number, mounting dimensions and intended use makes that fitment check more useful.
