Product details

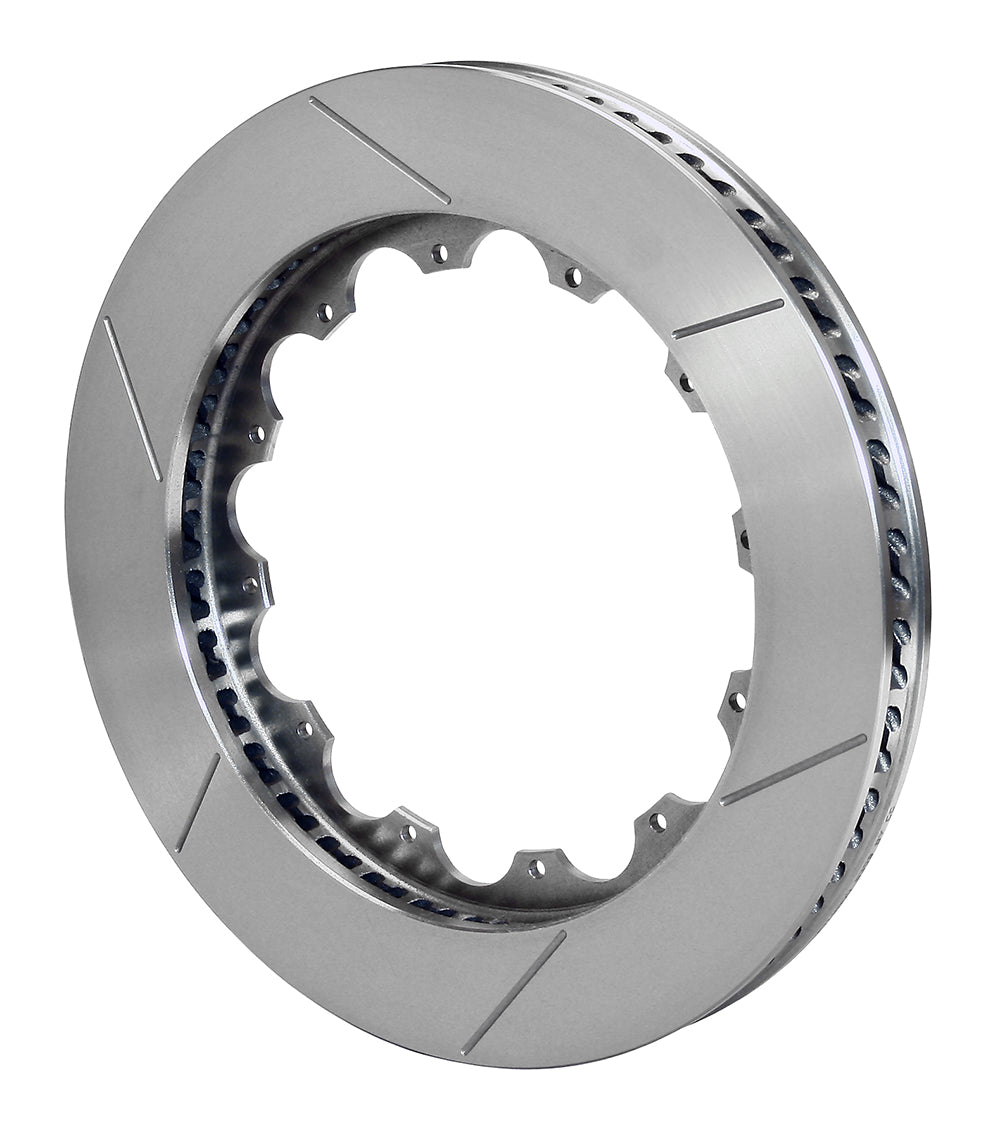

The GT version uses asymmetrical slots without the SRP cross-drilling. This right-hand 14.25 x 1.10-inch Spec-37 rotor combines curved vanes with individual balancing for a correctly matched high-temperature brake assembly. Wilwood Engineering, established by Bill Wood in 1977 and based in Camarillo, California, designs and manufactures disc brake systems. Its component range spans brake rotors and calipers alongside master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. The complete brake system governs which components belong together.
Technical Details
- Manufacturer part number: 160-11311
- Rotor size: 14.25 inches diameter x 1.10 inches wide
- Rotor material: Spec-37 Iron
- Face and finish: GT Slotted; Plain
- Vanes: 72 CV; curved
- Mounting direction: Right-hand
- Factory condition: Factory burnished no; balanced yes
- Opposite-side component, ordered separately: 160-11312
- Rotor-to-hat/hub attachment circle: 12 x 8.75 inches
- Attachment hole size or thread: 0.251 inches
- Center / lug registration: 8.25 inches
- Far-side inside diameter: 10.00 inches
- Approximate component weight: 15.80 lb
- Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate
Fitment & Compatibility
Select the separate hat for the 12 x 8.75-inch rotor-attachment pattern and 8.25-inch register. The 14.25-inch friction diameter and 1.10-inch section must agree with caliper placement and pad sweep. This mounting circle is independent of the vehicle's wheel-stud pattern. Select pads and operating duty to suit the rotor material and the intended brake system.
Manufacturer reference: Wilwood rotor specifications
Contact PMB Performance with the rotor and brake-system details for fitment assistance informed by more than 20 years of experience.
