Product details

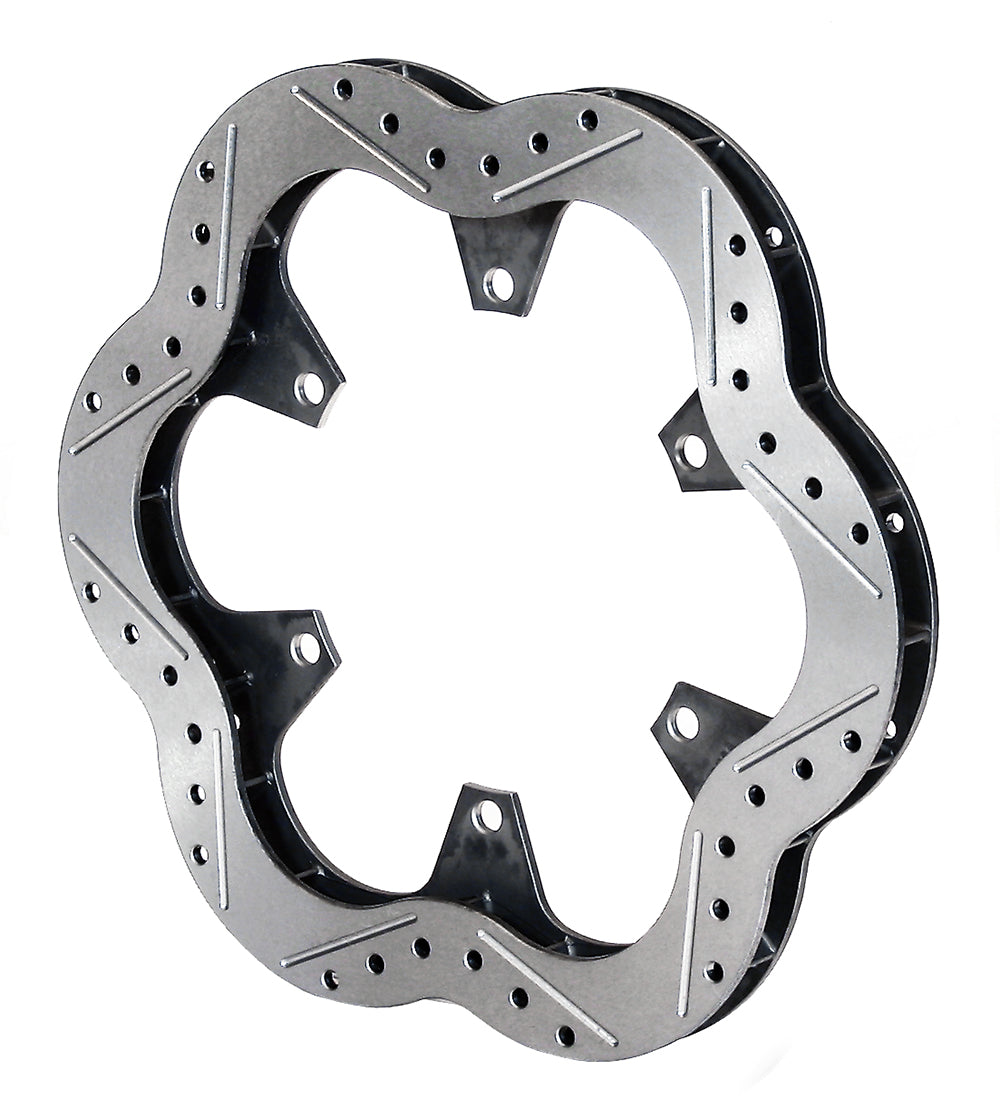

The scalloped 10.50-inch ring is vented through 24 passages while retaining a 0.78-inch working width. Wilwood developed this light Super Alloy configuration for dirt sprint inboard brakes, where the six-hole mounting arrangement and heat demand must match the race system. This component comes from Wilwood Engineering, founded by Bill Wood in 1977 and based in Camarillo, California. Wilwood designs and manufactures disc brake systems, including calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications, with compatibility determined by the complete brake assembly.
Technical Details
- Manufacturer part number: 160-11217
- Outside diameter / width: 10.50 inches diameter x 0.78 inches wide
- Material specification: Super Alloy
- Friction surface / finish: Drilled; Plain
- Ventilation: 24 vanes
- Mounting direction: Non-directional
- Preparation: Balanced: no; factory burnished: no
- Rotor-to-hat/hub attachment circle: 6 x 5.50 inches
- Attachment hole size or thread: 0.326 inches
- Center registration: 4.94 inches
- Far-side inside diameter: 7.30 inches
- Approximate weight: 3.20 lb
- Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate
Fitment & Compatibility
Use in the specified dirt sprint inboard brake arrangement, matching the six-on-5.50-inch attachment and 0.78-inch friction section. It is unsuitable for general-purpose substitutions and may not suit other forms of racing. Not for street use.
Manufacturer reference: Wilwood rotor specifications
For help identifying the correct replacement, share the installed brake package with PMB Performance. Our team draws on over 20 years of experience with brake components and fitment.
