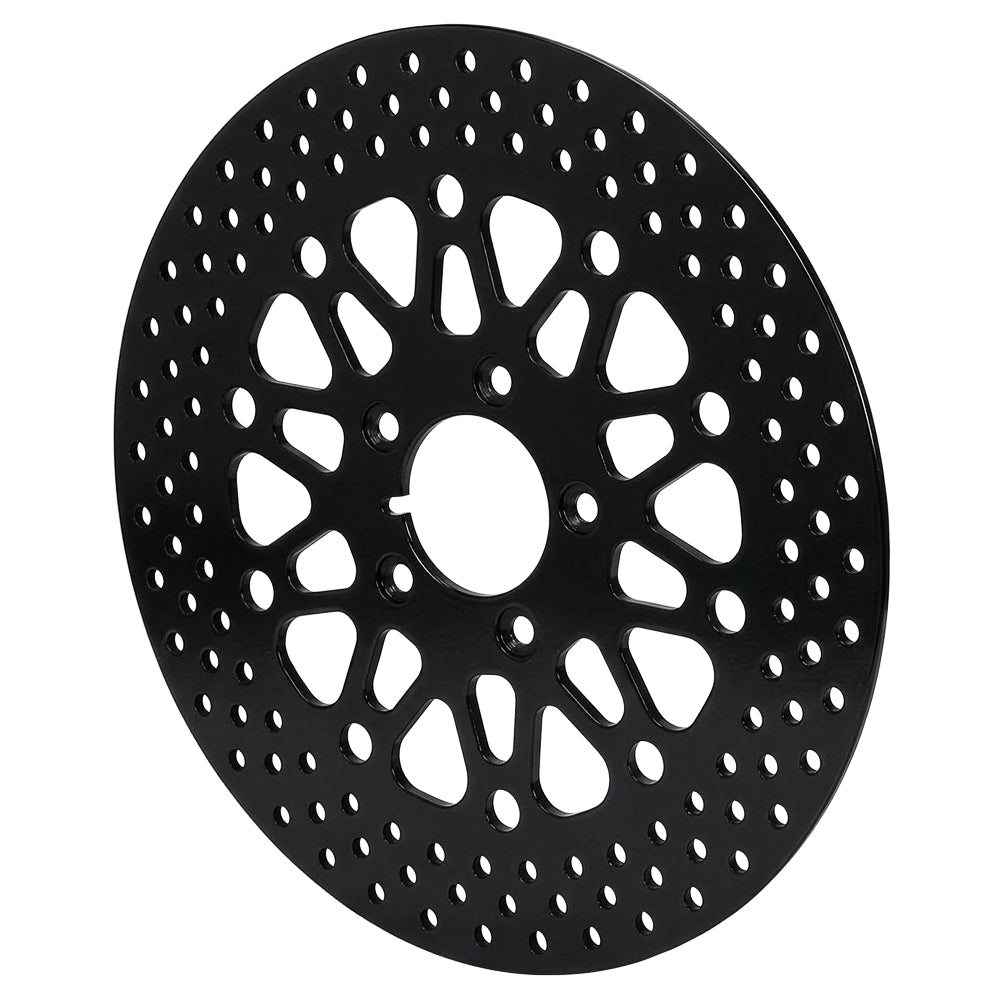

Wilwood Rear Black Drilled Rotor, 2.22-inch Register, Harley-Davidson 2000–2008

Choose this black rear rotor for a matching 2000–2008 Harley-Davidson brake retaining the 11.50-inch diameter. Its enlarged center register suits the later hub geometry, while the rear hole size must agree with the wheel's attachment hardware. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California, where it designs and manufactures disc brake systems and components. Calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications; each part must suit the complete brake system.

Technical Details

• Manufacturer part number: 160-10665-BK
• Friction dimensions: 11.50 inches diameter x 0.20 inches wide
• Construction: Stainless
• Surface treatment: Drilled; Black electrocoat
• Cooling layout: Solid, unvented
• Mounting direction: Non-directional
• Supplied preparation: Balanced: no; factory burnished: no
• Rotor-to-hat/hub attachment circle: 5 x 3.25 inches
• Attachment hole size or thread: 0.422 inches
• Center registration: 2.22 inches
• Approximate weight: 4.50 lb
• Quantity: one motorcycle rotor; mounting fasteners and pads are separate

Fitment & Compatibility

For the specified 2000–2008 Harley-Davidson rear brake applications using this rotor's OE dimensions. Confirm diameter, thickness, center register and attachment-hole size on the actual bike. The overlapping 2008 application ranges include different rotor sizes, so model year alone is insufficient. Hardware, pads and any additional rotor are ordered separately.

Manufacturer reference: Wilwood rotor specifications, Motorcycle rotor dimensions

PMB Performance brings over 20 years of brake and parts experience to component selection. Send the existing rotor identification and brake-kit details if you need help confirming the match.
