Product details

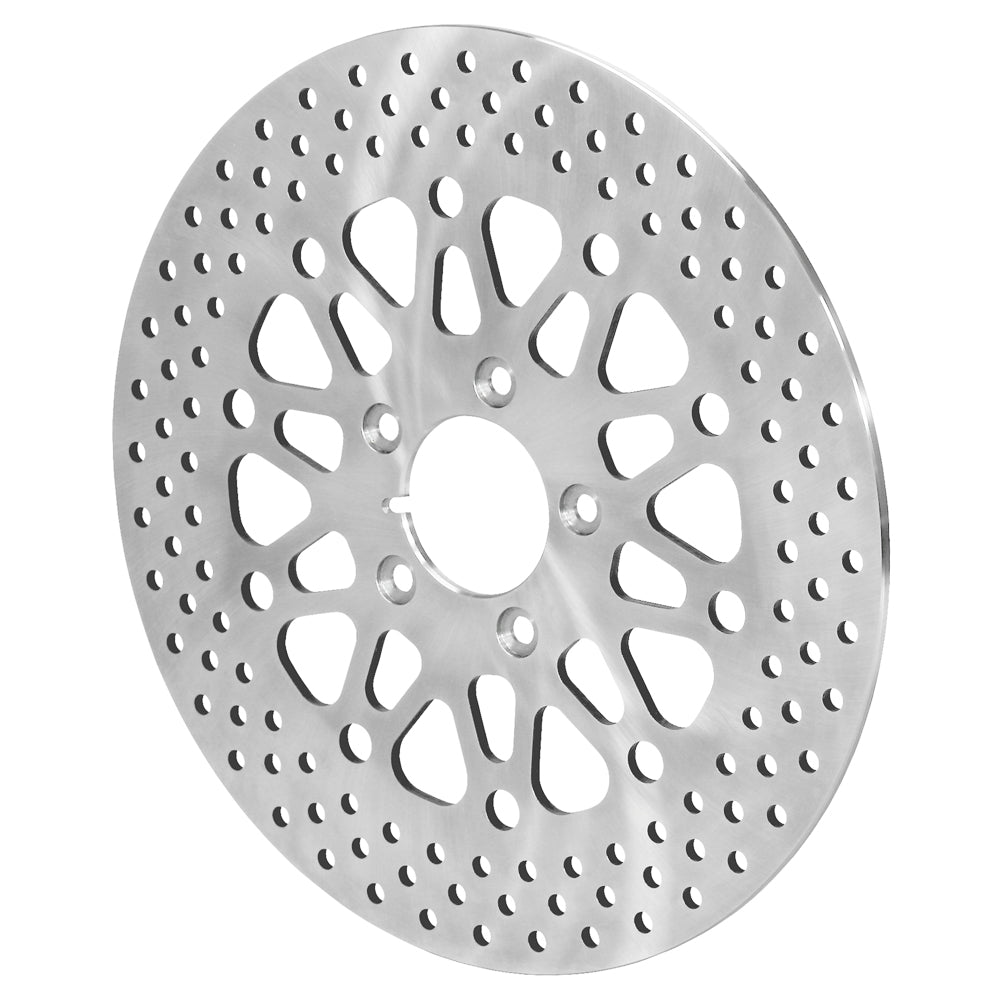

A satin surface and drilled stainless ring define this rear motorcycle rotor for the later 2.22-inch register. The 0.422-inch mounting holes are a rear-specific distinction within the 11.50-inch Harley-Davidson rotor family. Wilwood Engineering is based in Camarillo, California and was founded by Bill Wood in 1977. It designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. The range covers calipers, brake rotors, master cylinders, valves, fittings and brake lines, all of which require selection around the full brake system rather than an isolated dimension.
Technical Details
- Manufacturer part number: 160-10665
- Diameter and thickness: 11.50 inches diameter x 0.20 inches wide
- Ring material: Stainless
- Face pattern and coating: Drilled; Satin
- Internal layout: Solid, unvented
- Mounting direction: Non-directional
- Balancing and burnishing: Factory burnished no; balanced no
- Rotor-to-hat/hub attachment circle: 5 x 3.25 inches
- Attachment hole size or thread: 0.422 inches
- Center / lug registration: 2.22 inches
- Approximate component weight: 4.50 lb
- Quantity: one motorcycle rotor; mounting fasteners and pads are separate
Fitment & Compatibility
For the specified 2000–2008 Harley-Davidson rear brake applications using this rotor's OE dimensions. Confirm diameter, thickness, center register and attachment-hole size on the actual bike. The overlapping 2008 application ranges include different rotor sizes, so model year alone is insufficient. Hardware, pads and any additional rotor are ordered separately.
Manufacturer reference: Wilwood rotor specifications, Motorcycle rotor dimensions
PMB Performance can help you identify the matching brake components, drawing on over 20 years of experience. Include the current kit number and mounting measurements when requesting a fitment check.
