Product details

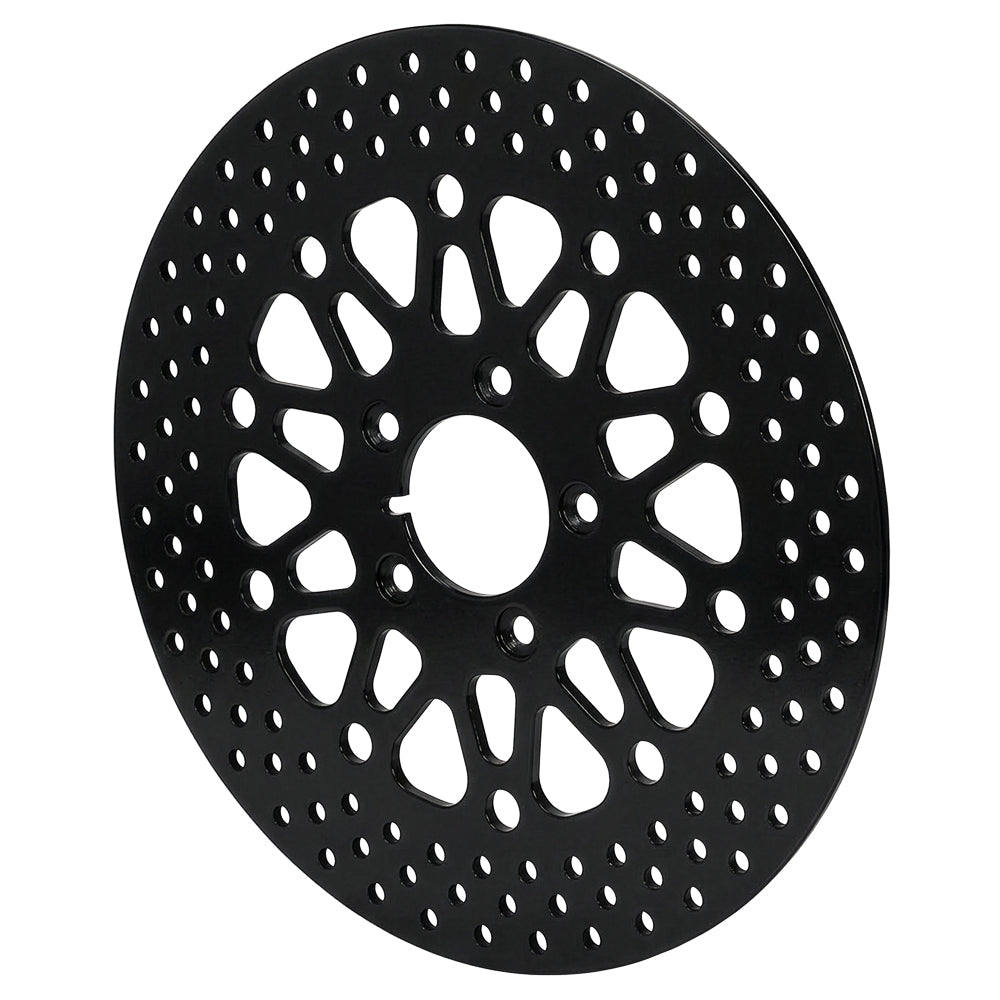

This black-finished front rotor retains the 11.50-inch OE-size friction ring while using the later 2.22-inch hub register. Five mounting holes on a 3.25-inch circle attach it to the corresponding Harley-Davidson wheel or hub; matching the year alone is insufficient. Founded by Bill Wood in 1977, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its calipers and brake rotors work alongside its master cylinders, valves, fittings and brake lines, with each individual component selected according to the complete system's requirements.
Technical Details
- Manufacturer part number: 160-10664-BK
- Outside diameter / width: 11.50 inches diameter x 0.20 inches wide
- Material specification: Stainless
- Friction surface / finish: Drilled; Black electrocoat
- Ventilation: Solid, unvented
- Mounting direction: Non-directional
- Preparation: Balanced: no; factory burnished: no
- Rotor-to-hat/hub attachment circle: 5 x 3.25 inches
- Attachment hole size or thread: 0.344 inches
- Center registration: 2.22 inches
- Approximate weight: 4.50 lb
- Quantity: one motorcycle rotor; mounting fasteners and pads are separate
Fitment & Compatibility
For the specified 2000–2008 Harley-Davidson front brake applications using this rotor's OE dimensions. Confirm diameter, thickness, center register and attachment-hole size on the actual bike. The overlapping 2008 application ranges include different rotor sizes, so model year alone is insufficient. Hardware, pads and any additional rotor are ordered separately.
Manufacturer reference: Wilwood rotor specifications, Motorcycle rotor dimensions
