Product details

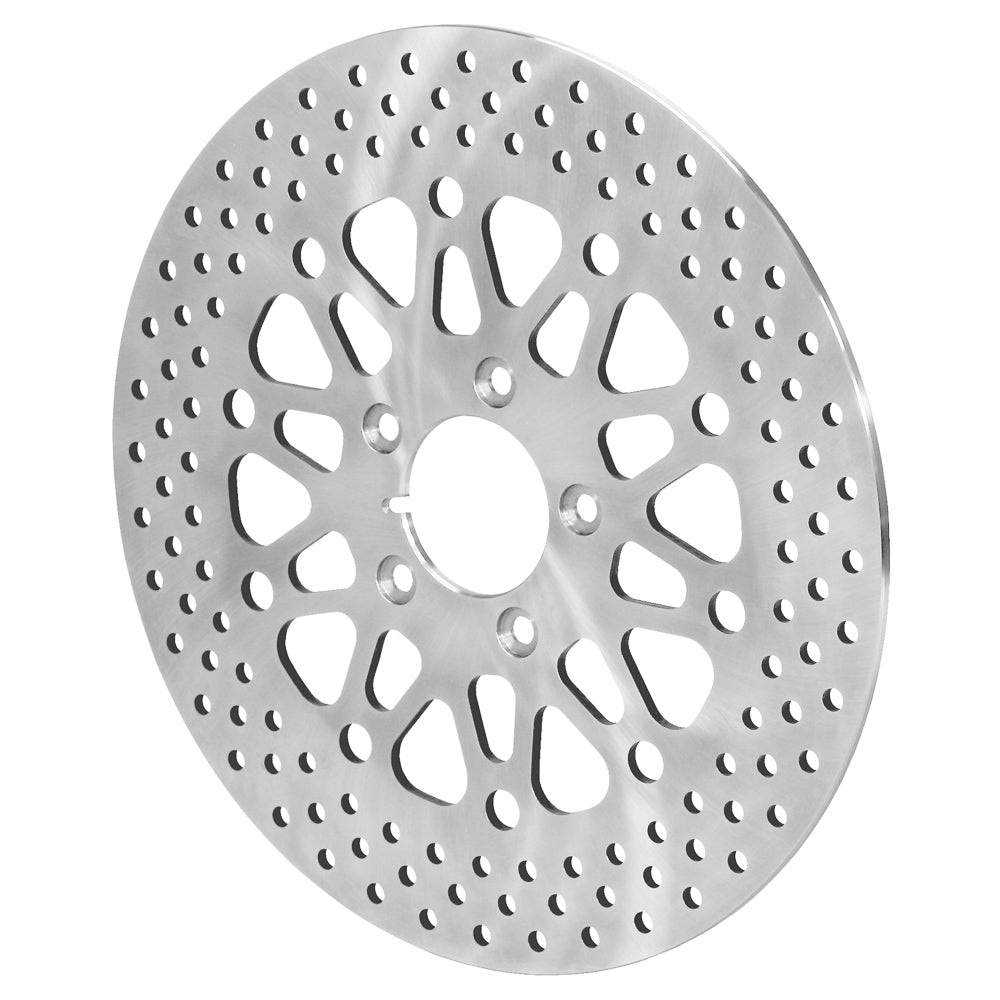

The 2.22-inch center opening identifies this satin front rotor for matching 2000–2008 Harley-Davidson hubs. Its 11.50-inch diameter is distinct from the 11.80-inch front rotor also used in later applications, so the existing brake dimensions govern selection. For this rotor, the manufacturer is Wilwood Engineering, founded in 1977 by Bill Wood and based in Camarillo, California. Wilwood designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Its motorsport, street-performance and specialized products are selected to satisfy the complete brake system's requirements.
Technical Details
- Manufacturer part number: 160-10664
- Rotor size: 11.50 inches diameter x 0.20 inches wide
- Rotor material: Stainless
- Face and finish: Drilled; Satin
- Vanes: Solid, unvented
- Mounting direction: Non-directional
- Factory condition: Factory burnished no; balanced no
- Rotor-to-hat/hub attachment circle: 5 x 3.25 inches
- Attachment hole size or thread: 0.344 inches
- Center / lug registration: 2.22 inches
- Approximate component weight: 4.50 lb
- Quantity: one motorcycle rotor; mounting fasteners and pads are separate
Fitment & Compatibility
For the specified 2000–2008 Harley-Davidson front brake applications using this rotor's OE dimensions. Confirm diameter, thickness, center register and attachment-hole size on the actual bike. The overlapping 2008 application ranges include different rotor sizes, so model year alone is insufficient. Hardware, pads and any additional rotor are ordered separately.
Manufacturer reference: Wilwood rotor specifications, Motorcycle rotor dimensions
Contact PMB Performance with the rotor and brake-system details for fitment assistance informed by more than 20 years of experience.
