Product details

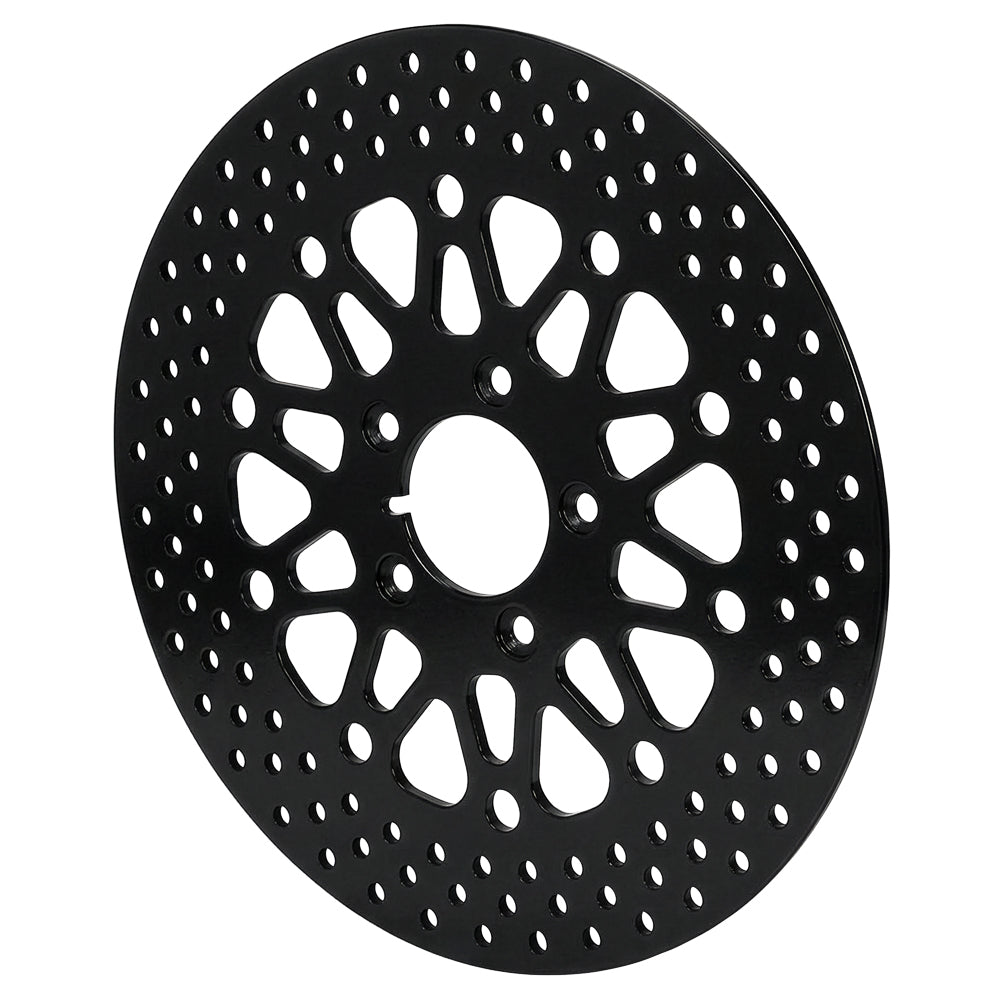

A black electrocoat finish gives this early Harley-Davidson front rotor a darker appearance over its stainless construction. The 11.50-inch friction diameter remains an OE-dimension selection requiring a 1.99-inch center register and the correct front fasteners. Disc brake systems and components are the work of Wilwood Engineering, founded by Bill Wood in 1977 and based in Camarillo, California. The company designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications, with each component selected to match the complete system.
Technical Details
- Manufacturer part number: 160-10662-BK
- Outside diameter / width: 11.50 inches diameter x 0.20 inches wide
- Material specification: Stainless
- Friction surface / finish: Drilled; Black electrocoat
- Ventilation: Solid, unvented
- Mounting direction: Non-directional
- Preparation: Balanced: no; factory burnished: no
- Rotor-to-hat/hub attachment circle: 5 x 3.25 inches
- Attachment hole size or thread: 0.344 inches
- Center registration: 1.99 inches
- Approximate weight: 4.50 lb
- Quantity: one motorcycle rotor; mounting fasteners and pads are separate
Fitment & Compatibility
For the specified 1984–1999 Harley-Davidson front brake applications using this rotor's OE dimensions. Confirm diameter, thickness, center register and attachment-hole size on the actual bike. The overlapping 2008 application ranges include different rotor sizes, so model year alone is insufficient. Hardware, pads and any additional rotor are ordered separately.
Manufacturer reference: Wilwood rotor specifications, Motorcycle rotor dimensions
For help identifying the correct replacement, share the installed brake package with PMB Performance. Our team draws on over 20 years of experience with brake components and fitment.
