Product details

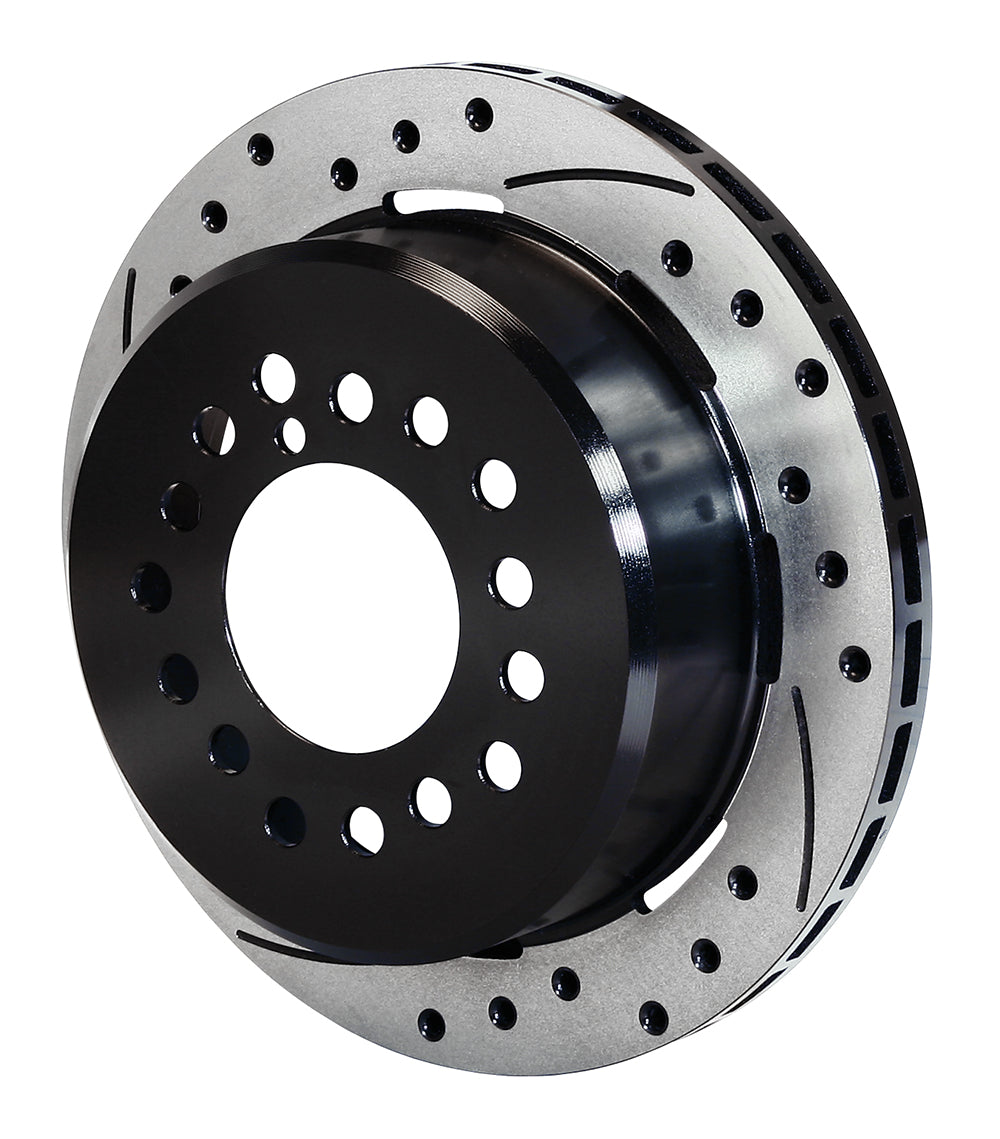

Use this left-hand SRP rotor when the rear conversion requires a 12.19 x 0.81-inch friction ring and 2.32-inch hat offset. Black electrocoat protects the iron component, while its directional hole-and-slot layout is matched to the specified side. The manufacturer is Wilwood Engineering of Camarillo, California, founded by Bill Wood in 1977. It designs and manufactures disc brake systems, supplying calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Matching this component requires consideration of the complete brake system.
Technical Details
- Manufacturer part number: 160-10051-BK
- Outside diameter / width: 12.19 inches diameter x 0.81 inches wide
- Material specification: Iron
- Friction surface / finish: SRP Drilled & Slotted; Black electrocoat
- Ventilation: 32 vanes
- Mounting direction: Left-hand
- Preparation: Balanced: no; factory burnished: no
- Opposite-side component, ordered separately: 160-10050-BK
- Hat wheel-stud clearance pattern: 5 x 4.75 inches
- Stud clearance-hole sizes: .45/.48/.52 inches
- Center registration: 3.06 inches
- Far-side inside diameter: 8.38 inches
- Hat offset: 2.320 inches
- Internal parking-drum diameter: 7.24 inches
- Inside clearance diameter: 7.16 inches
- Hat mounting-face thickness: 0.18 inches
- Approximate weight: 14.40 lb
- Quantity: one rotor with integral hat; separate hub, pads, calipers, mounting hardware and any parking-brake mechanism are not included
Fitment & Compatibility
For the matching rear disc/drum conversion using a 7.24-inch internal parking drum and 2.32-inch hat offset. Verify axle-flange registration, the five-on-4.75-inch stud-clearance circle and caliper position. Parking shoes, brackets and the axle hub are separate components.
Manufacturer reference: Wilwood rotor specifications
