Product details

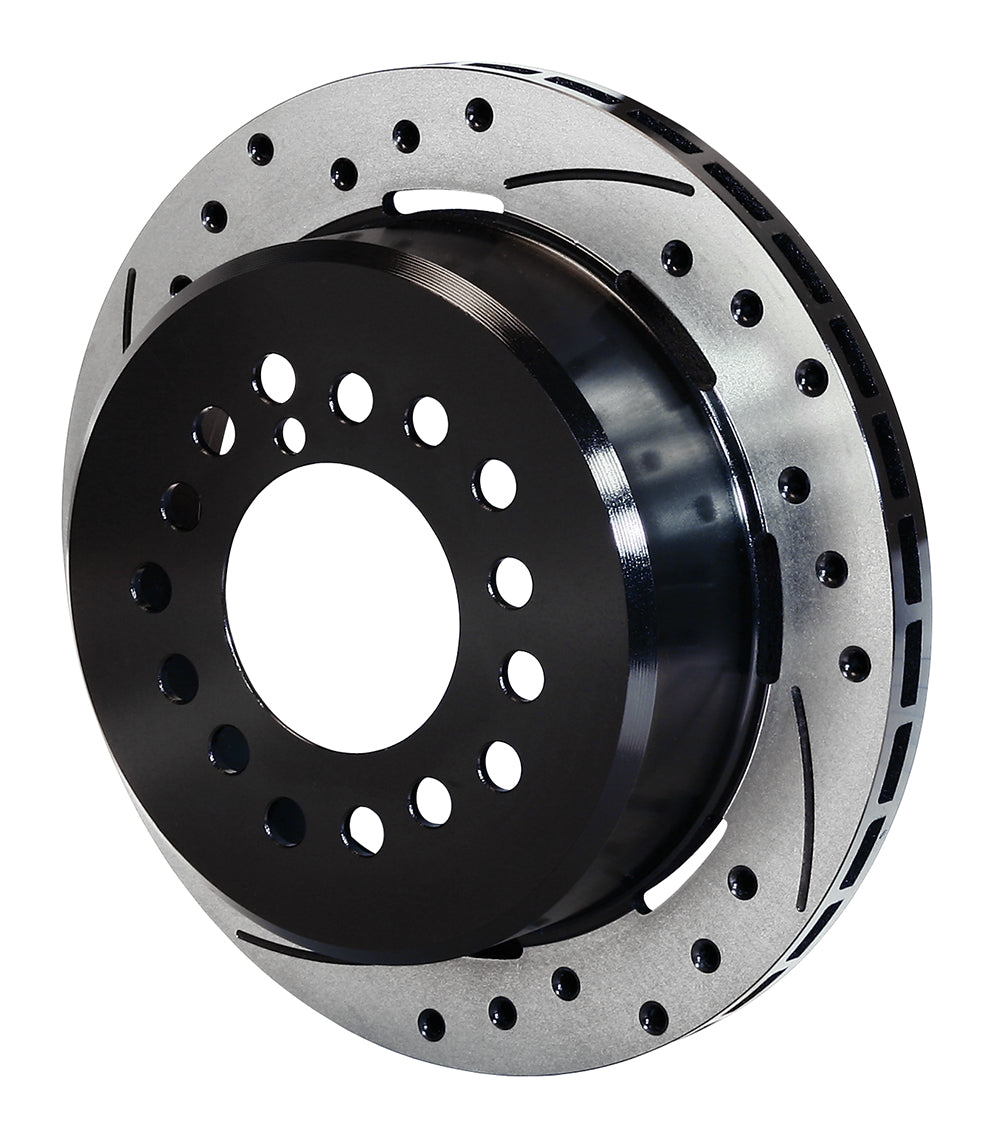

The right-hand SRP face pattern adds drilling and slots to this 12.19-inch rear rotor and hat. The integral 7.24-inch drum serves a compatible internal parking brake, with the 2.32-inch offset setting the friction ring's position relative to the mounting face. Wilwood Engineering, established by Bill Wood in 1977 and based in Camarillo, California, designs and manufactures disc brake systems. Its component range spans brake rotors and calipers alongside master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. The complete brake system governs which components belong together.
Technical Details
- Manufacturer part number: 160-10050-BK
- Rotor size: 12.19 inches diameter x 0.81 inches wide
- Rotor material: Iron
- Face and finish: SRP Drilled & Slotted; Black electrocoat
- Vanes: 32 vanes
- Mounting direction: Right-hand
- Factory condition: Factory burnished no; balanced no
- Opposite-side component, ordered separately: 160-10051-BK
- Hat wheel-stud clearance pattern: 5 x 4.75 inches
- Stud clearance-hole sizes: .45/.48/.52 inches
- Center / lug registration: 3.06 inches
- Far-side inside diameter: 8.38 inches
- Hat offset: 2.320 inches
- Internal parking-drum diameter: 7.24 inches
- Inside clearance diameter: 7.16 inches
- Hat mounting-face thickness: 0.18 inches
- Approximate component weight: 14.40 lb
- Quantity: one rotor with integral hat; separate hub, pads, calipers, mounting hardware and any parking-brake mechanism are not included
Fitment & Compatibility
For the matching rear disc/drum conversion using a 7.24-inch internal parking drum and 2.32-inch hat offset. Verify axle-flange registration, the five-on-4.75-inch stud-clearance circle and caliper position. Parking shoes, brackets and the axle hub are separate components.
Manufacturer reference: Wilwood rotor specifications
Contact PMB Performance with the rotor and brake-system details for fitment assistance informed by more than 20 years of experience.
