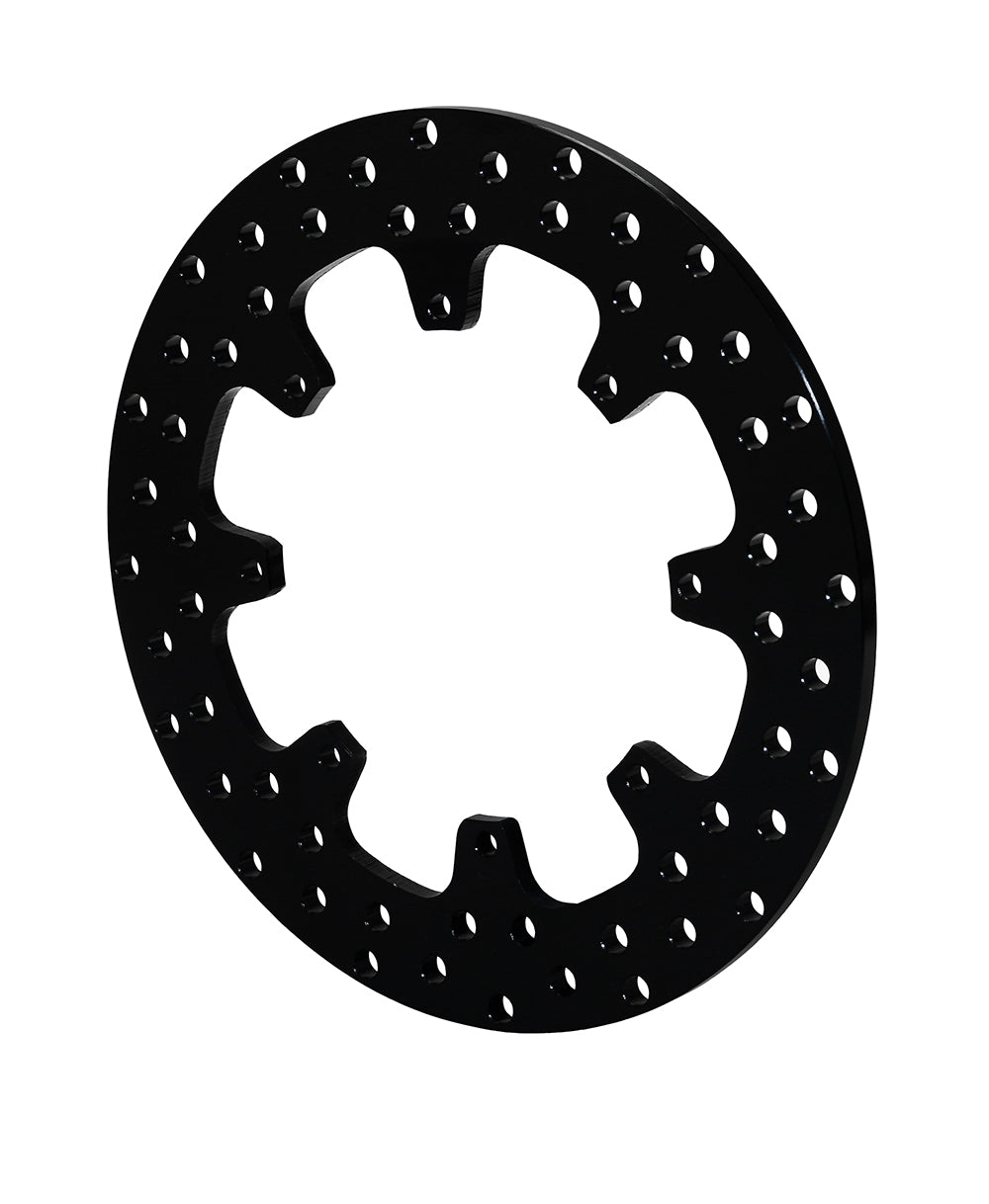

Wilwood Drilled Steel Racing Rotor — 12.00 x 0.35 Inches, Black Finish

This 12.00-inch drilled steel rotor has a 0.35-inch solid section for controlled-temperature drag or dirt racing. Wilwood’s mounting descriptions differ, so confirm the actual hat connection and hardware before ordering. Wilwood Engineering designs and manufactures disc brake systems from its base in Camarillo, California. Bill Wood founded the company in 1977; its range now includes calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized uses. Selection must account for the entire brake system.

Technical Details

• Manufacturer part number: 160-0525
• Diameter and thickness: 12.00 inches diameter x 0.35 inches wide
• Ring material: Steel
• Face pattern and coating: Drilled; Black electrocoat
• Internal layout: Solid, unvented
• Mounting direction: Non-directional
• Balancing and burnishing: Factory burnished no; balanced no
• Manufacturer dimension-table mounting reference: 8 x 7.00-inch circle with 0.326-inch holes; the additional notes instead describe slotted T-nut mounting. Confirm the actual supplied interface before selecting a hat or hardware.
• Center / lug registration: 6.38 inches
• Approximate component weight: 5.40 lb
• Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate

Fitment & Compatibility

Drag or dirt racing use only; not for street use. Confirm the actual mounting method before ordering: Wilwood's dimension table gives eight 0.326-inch holes on a 7.00-inch circle, while its additional notes describe slots with T-nuts. The required hat and hardware must be established from the supplied rotor.

Manufacturer reference: Wilwood rotor specifications
