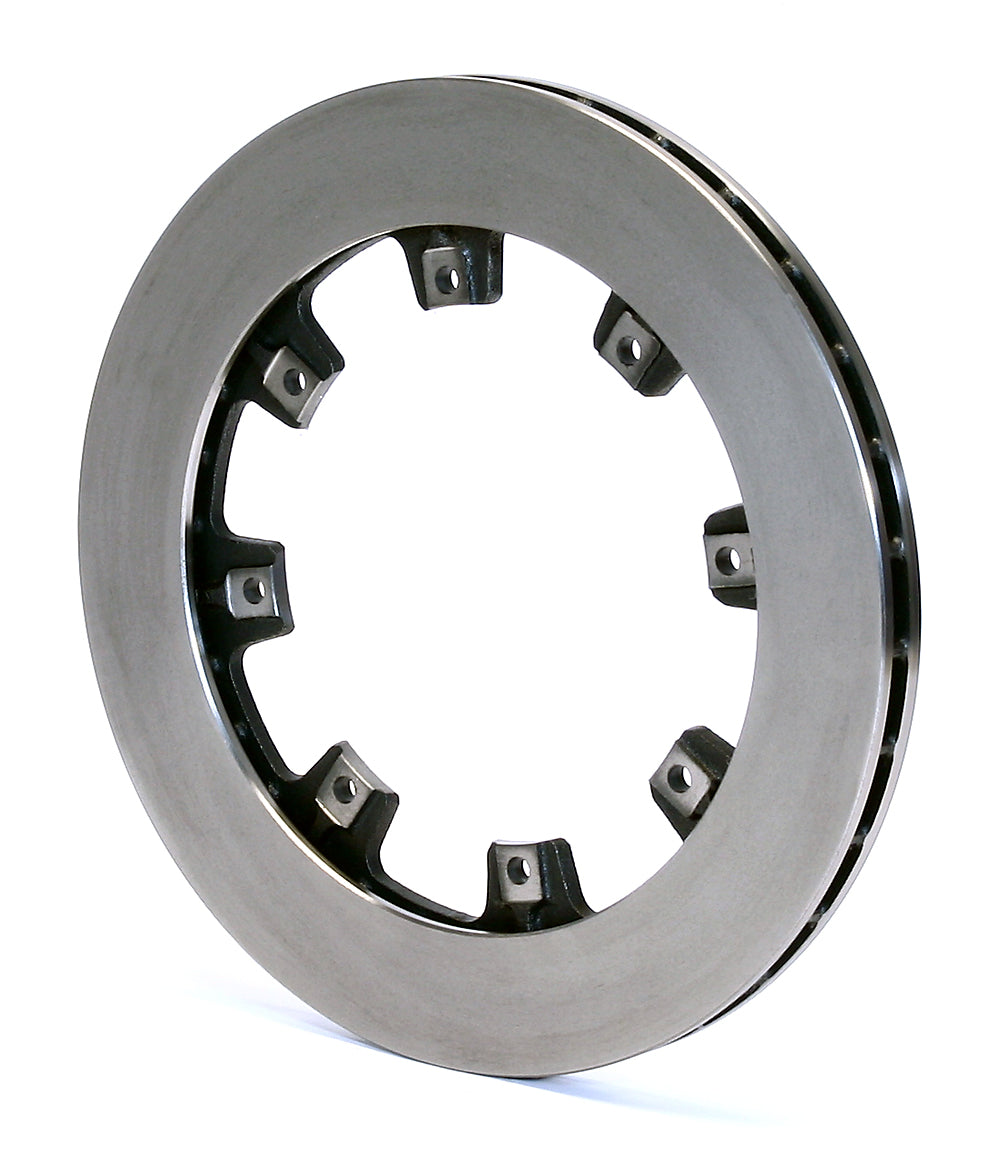

Wilwood Ultralite Brake Rotor, 11.75 x 0.81-inch, 32 Straight Vanes

A plain friction face and 32 straight cooling vanes make this Ultralite rotor an option for a compatible street or moderate-temperature race brake system. Its 0.81-inch width distinguishes it from the thicker rotor sharing the 11.75-inch diameter. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California, where it designs and manufactures disc brake systems and components. Calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications; each part must suit the complete brake system.

Technical Details

• Manufacturer part number: 160-0471
• Friction dimensions: 11.75 inches diameter x 0.81 inches wide
• Construction: Iron
• Surface treatment: Plain Face; Plain
• Cooling layout: 32 vanes; straight
• Mounting direction: Non-directional
• Supplied preparation: Balanced: no; factory burnished: no
• Rotor-to-hat/hub attachment circle: 8 x 7.00 inches
• Attachment hole size or thread: 0.326 inches
• Center registration: 6.38 inches
• Far-side inside diameter: 8.34 inches
• Approximate weight: 8.10 lb
• Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate

Fitment & Compatibility

For a matched street or moderate-temperature competition brake assembly. Confirm the hat's attachment circle and register, the caliper's rotor-width capacity and the full pad sweep. A rotor ring does not establish vehicle or axle compatibility by itself.

Manufacturer reference: Wilwood rotor specifications

PMB Performance brings over 20 years of brake and parts experience to component selection. Send the existing rotor identification and brake-kit details if you need help confirming the match.
