Product details
This TX1 set uses the 7520 plate and nominal 0.80-inch thickness for the listed Grand National and AV6R caliper families. Wilwood's armored/off-road compound provides a different operating choice on that hardware, without establishing vehicle-specific fitment by itself. Wilwood Engineering's range covers calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to meet the needs of a complete brake system. The company was founded by Bill Wood in 1977 and is based in Camarillo, California, designing and manufacturing disc brake systems for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 150-TX1-7520K
- Pad type: TX1 replacement brake pad set
- Pad profile: 7520
- Quantity: 4 pads
- Position: Installation-dependent; confirm the actual caliper application
- Nominal thickness (Wilwood specification): .80 inch
- Compatible rotor material: Iron / Steel
- Compound application: Armored vehicle and off-road applications

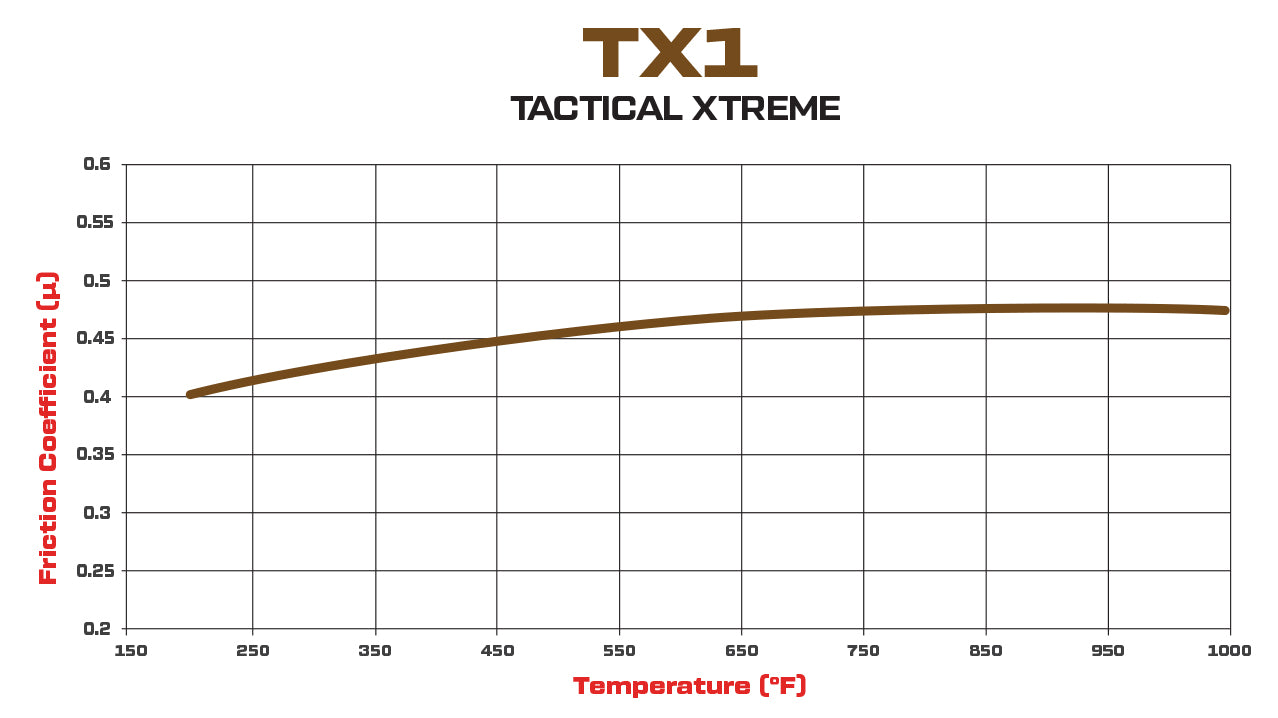

- Friction characteristics: Medium-high friction; Wilwood describes a flat torque response from 100°F to 1200°F and medium-low pad wear.
- Caliper selection: Listed Grand National III, GN4R, GN6R and AV6R calipers using the 7520 plate
- Pad area: 11.1 sq in
- Pad volume: 6.9 cu in
- Factory bedded: No
- Published weight: 6.200 lb
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Fitment & Compatibility

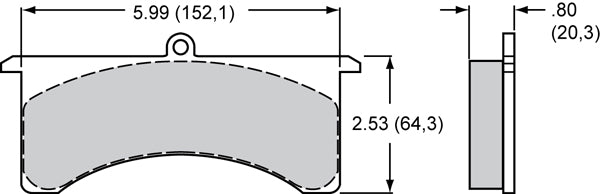

Confirm the Grand National III, GN4R, GN6R or AV6R caliper and compare its retaining features with the drawing. Pad size, rotor material and expected operating temperature must be considered together before choosing this TX1 set.
Wilwood pad specifications and compatible-caliper reference
With over 20 years of experience, PMB Performance can help compare the pad profile with your brake configuration. Include the vehicle year, brake package and clear caliper details when requesting a fitment check.
