Product details
The 7416 plate carries TX1 friction in this narrow Superlite pad set, retaining the nominal 0.65-inch fit while changing the operating application from a street-focused compound. Wilwood lists TX1 for armored and off-road use with iron or steel rotors. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Those components need to be selected together around the complete brake system's requirements.
Technical Details
- Manufacturer part number: 150-TX1-7416K
- Pad type: TX1 replacement brake pad set
- Pad profile: 7416
- Quantity: 4 pads
- Position: Installation-dependent; confirm the actual caliper application

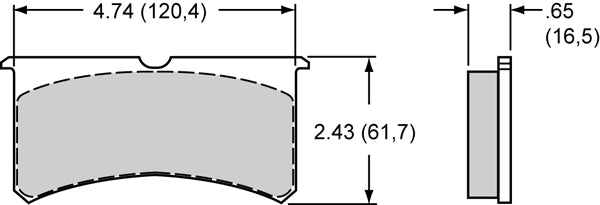

- Nominal thickness (Wilwood specification): .65 inch
- Compatible rotor material: Iron / Steel
- Compound application: Armored vehicle and off-road applications
- Friction characteristics: Medium-high friction; Wilwood describes a flat torque response from 100°F to 1200°F and medium-low pad wear.
- Caliper selection: Listed narrow Superlite and SLC56 calipers using the 7416 plate
- Pad area: 8.2 sq in
- Pad volume: 3.8 cu in
- Factory bedded: No
- Published weight: 3.850 lb
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Fitment & Compatibility
Check the specific narrow Superlite or SLC56 caliper and its required pad clearance. Width alone cannot distinguish this plate from thicker related Superlite pads, and neither the compound nor family name defines front or rear position.
Wilwood pad specifications and compatible-caliper reference
PMB Performance brings over 20 years of brake and parts experience to fitment checks. Send your vehicle details and caliper identification if you need help confirming this pad selection.
