Product details
TX1 friction on the 10120 plate is Wilwood's armored-vehicle and off-road choice for the listed Tactical Xtreme calipers. This set is nominally 0.755 inch thick and is described by Wilwood as a medium-high-friction compound with low-temperature response. Bill Wood established Wilwood Engineering in 1977, and the company is based in Camarillo, California. It designs and manufactures disc brake systems, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized use. The individual parts must be selected as compatible elements of the complete brake system.
Technical Details
- Manufacturer part number: 150-TX1-10120K
- Pad type: TX1 replacement brake pad set
- Pad profile: 10120
- Quantity: 4 pads
- Position: Installation-dependent; confirm the actual caliper application

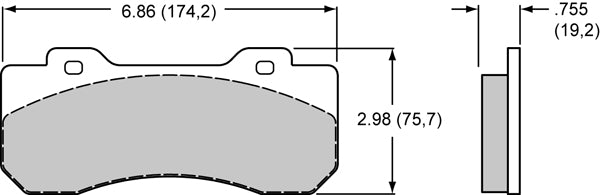

- Nominal thickness (Wilwood specification): .755 inch
- Compatible rotor material: Iron / Steel
- Compound application: Armored vehicle and off-road applications

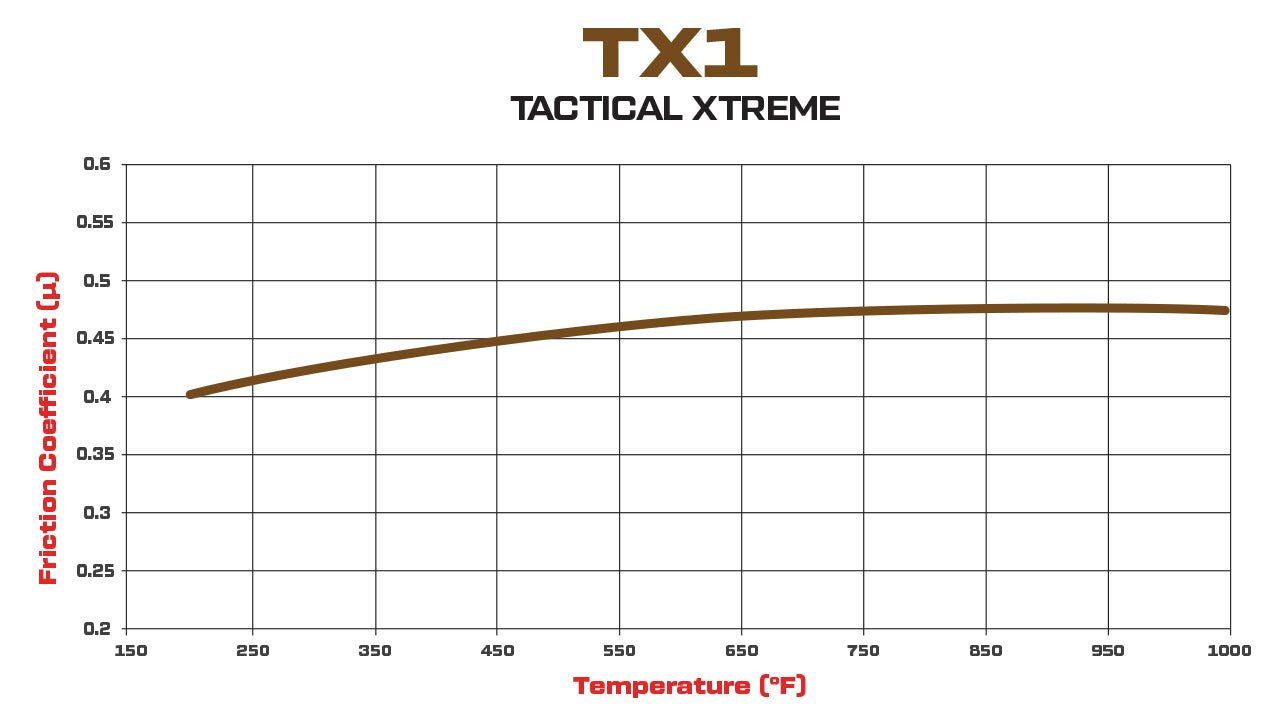

- Friction characteristics: Medium-high friction; Wilwood describes a flat torque response from 100°F to 1200°F and medium-low pad wear.
- Caliper selection: Listed TX4R, TX6R and TX6-DM calipers using the 10120 plate
- Pad area: 12.69 sq in
- Pad volume: 6.81 cu in
- Factory bedded: No
- Published weight: 8.000 lb
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Fitment & Compatibility
Check the specific TX4R, TX6R or TX6-DM caliper, pad opening and compatible iron or steel rotor. Select the compound for the vehicle's real operating temperatures and duty; the pad does not establish a vehicle load rating or complete-system capacity.
Wilwood pad specifications and compatible-caliper reference
For help checking this application, contact PMB Performance with the vehicle and installed brake details. Our team draws on over 20 years of experience with parts and brake fitment.
