Product details
The 7812 BP-Q set serves the listed compact Wilwood caliper families with a nominal 0.49-inch pad. Its ceramic-based formulation is rated very low for dust and noise, but the plate and caliper dimensions must still be confirmed for the specific installation. Wilwood Engineering designs and manufactures disc brake systems from its base in Camarillo, California. Bill Wood founded the company in 1977; its range now includes calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Component selection must account for the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 150-Q-7812K
- Pad type: BP-Q replacement brake pad set
- Pad profile: 7812
- Quantity: 4 pads
- Position: Installation-dependent; confirm the actual caliper application

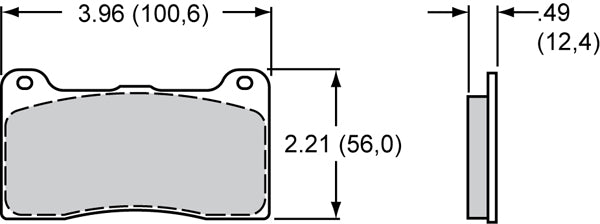

- Nominal thickness (Wilwood specification): .49 inch
- Compatible rotor material: Steel, Iron
- Compound application: Street use, custom show cars, street rods, muscle cars and compatible truck/SUV kits

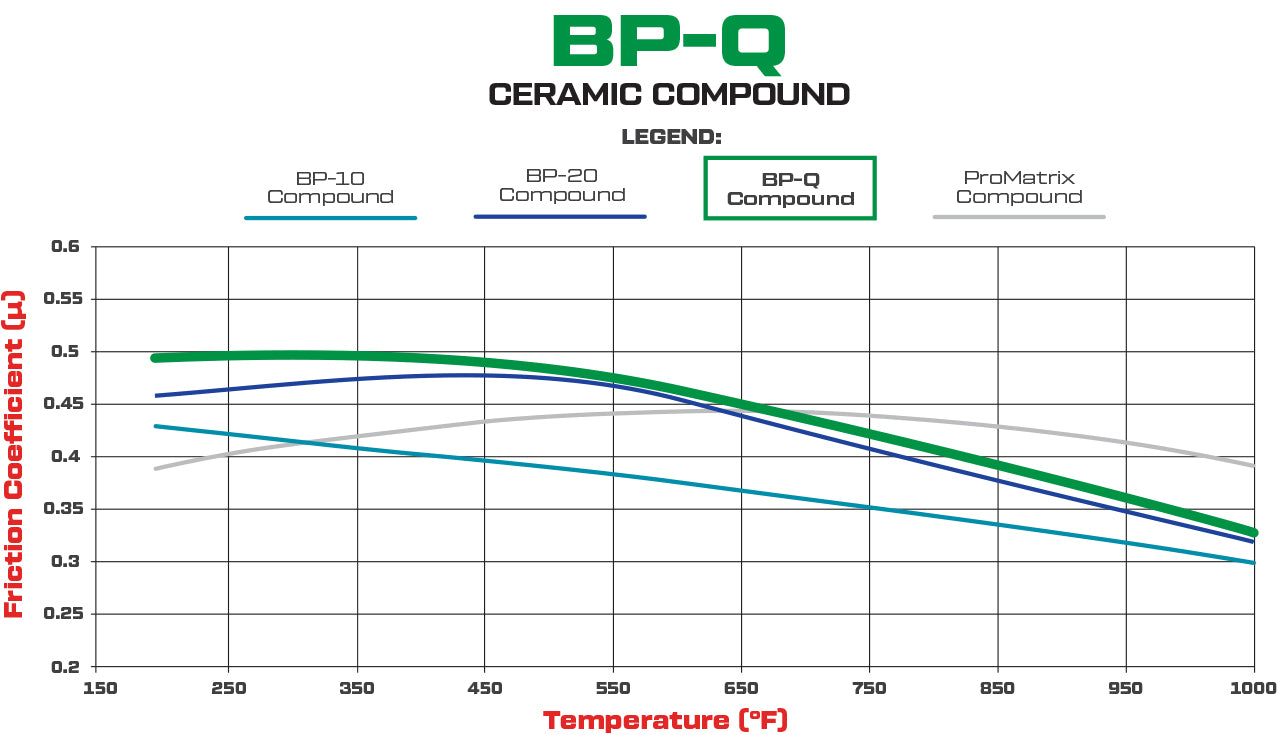

- Friction characteristics: Ceramic-based medium-friction formulation, with a smooth initial response and low wear at low temperatures.
- Caliper selection: Listed Dynapro, DPHA, XRD and UTV calipers accepting the 7812 plate
- Pad area: 6.36 sq in
- Pad volume: 2.1 cu in
- Factory bedded: No
- Published weight: 2.600 lb
- Wilwood dust rating: Very Low
- Wilwood noise rating: Very Low
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Fitment & Compatibility
Compare the compatible Dynapro, DPHA, XRD, UTV4 or UTV6 model with Wilwood's reference, including the appropriate mount and caliper version. This is component-level fitment and does not establish a universal UTV, passenger-car or front/rear application.
Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference
PMB Performance has more than 20 years of experience helping customers identify the correct brake components. For a modified system, provide the caliper model and pad measurements alongside the vehicle details.
