Product details
This BP-Q set places ceramic-based street friction on the 7416 narrow Superlite plate. Its nominal 0.65-inch thickness and Wilwood's very-low dust/noise ratings distinguish both the physical fit and the compound choice from wider or higher-temperature pad options. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California, where it designs and manufactures disc brake systems and components. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications, with each component selected to suit the complete brake system.
Technical Details
- Manufacturer part number: 150-Q-7416K
- Pad type: BP-Q replacement brake pad set
- Pad profile: 7416
- Quantity: 4 pads
- Position: Installation-dependent; confirm the actual caliper application

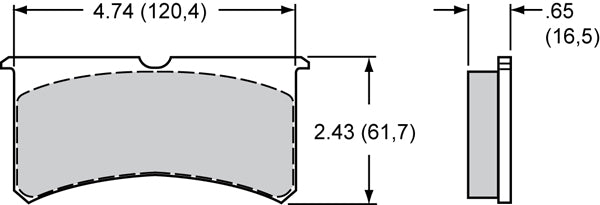

- Nominal thickness (Wilwood specification): .65 inch
- Compatible rotor material: Steel, Iron
- Compound application: Street use, custom show cars, street rods, muscle cars and compatible truck/SUV kits

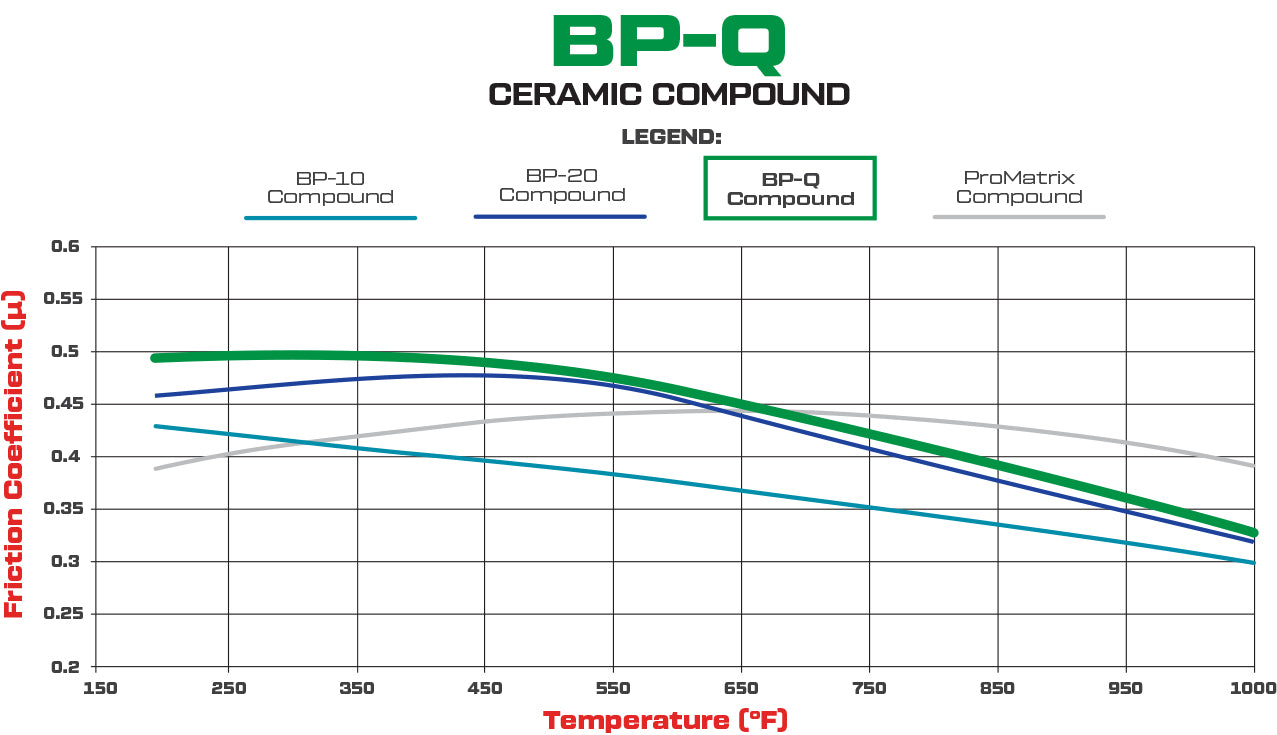

- Friction characteristics: Ceramic-based medium-friction formulation, with a smooth initial response and low wear at low temperatures.
- Caliper selection: Listed narrow Superlite and SLC56 calipers using the 7416 plate
- Pad area: 8.2 sq in
- Pad volume: 3.8 cu in
- Factory bedded: No
- Published weight: 4.000 lb
- Wilwood dust rating: Very Low
- Wilwood noise rating: Very Low
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Fitment & Compatibility
Match the exact narrow Superlite four- or six-piston model, or SLC56, to the compatible-caliper reference. The same family name can appear in different installations, so determine axle position from the actual brake system rather than from this pad alone.
Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference
With over 20 years of experience, PMB Performance can help compare the pad profile with your brake configuration. Include the vehicle year, brake package and clear caliper details when requesting a fitment check.
