Wilwood BP-Q Pads for Dynalite Single and Dynapro Single Calipers — Three-Hole Plate

Three holes in the 6812 backing plate identify this BP-Q pad for listed Dynalite Single and Dynapro Single calipers. The exact product specification states 0.49 inch thick, while the drawing marks 0.50 inch, so verify the required pad clearance for the fitted caliper. Based in Camarillo, California, Wilwood Engineering was founded by Bill Wood in 1977. Its work includes the design and manufacture of disc brake systems, calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Component choice must suit the complete brake system, including its intended use and mating hardware.

Technical Details

• Manufacturer part number: 150-Q-6812K
• Pad type: BP-Q replacement brake pad set
• Pad profile: 6812
• Quantity: 4 pads
• Position: Installation-dependent; confirm the actual caliper application
• Nominal thickness (Wilwood specification): .49 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street use, custom show cars, street rods, muscle cars and compatible truck/SUV kits

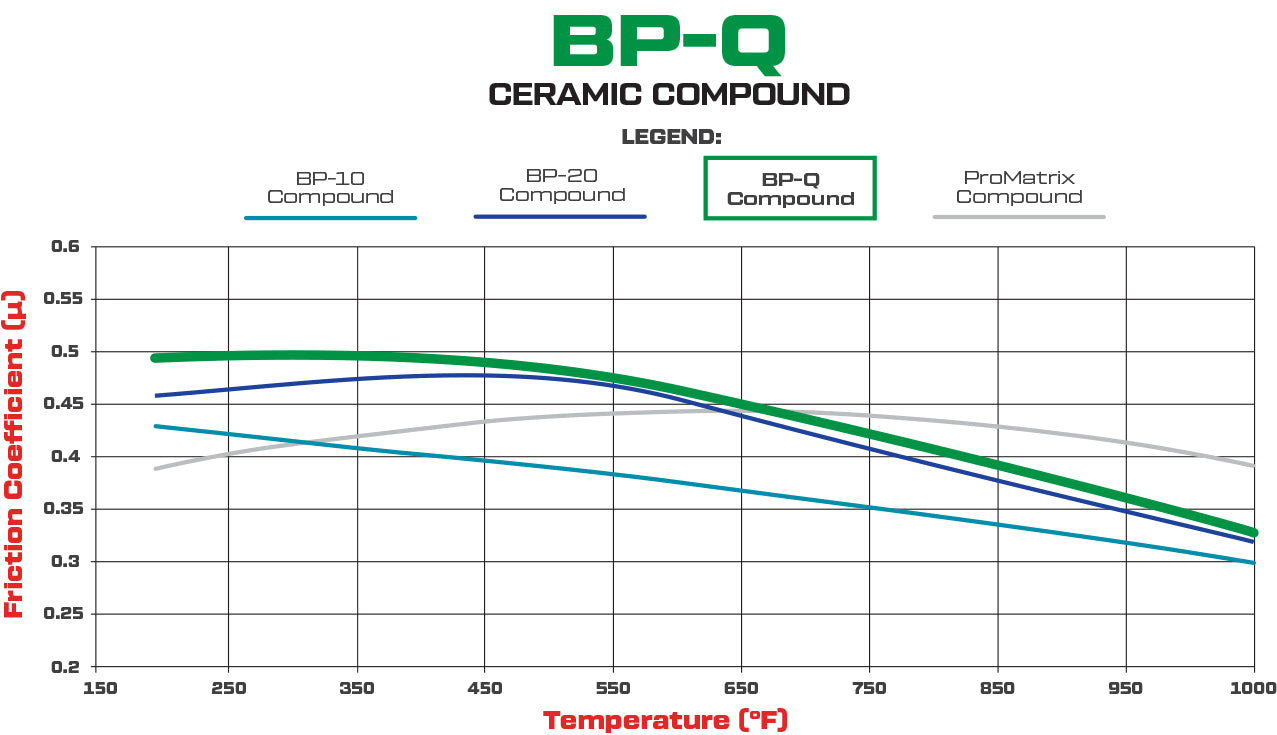

• Friction characteristics: Ceramic-based medium-friction formulation, with a smooth initial response and low wear at low temperatures.
• Caliper selection: Listed Dynalite Single and Dynapro Single calipers using the 6812 plate
• Pad area: 3 sq in
• Pad volume: 1.1 cu in
• Factory bedded: No
• Published weight: 1.100 lb
• Wilwood dust rating: Very Low
• Wilwood noise rating: Very Low
• Thickness marked on drawing: .50 inch — differs from the nominal product specification; confirm before ordering

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Use the individual caliper reference, including the appropriate DLS or DPS version, rather than assuming every single-piston Wilwood brake uses this plate. BP-Q is the ceramic-based street choice here and requires a compatible iron or steel rotor.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

PMB Performance brings over 20 years of brake and parts experience to fitment checks. Send your vehicle details and caliper identification if you need help confirming this pad selection.
