Product details
BP-Q puts Wilwood's ceramic-based street compound on the large 10120 plate used by listed Tactical Xtreme calipers. The nominal 0.755-inch pad is rated very low for dust and noise by Wilwood, offering a distinct compound choice from TX1 for the same caliper family. Bill Wood founded Wilwood Engineering in 1977. From its base in Camarillo, California, Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized use, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Compatibility with the complete brake system governs selection of the individual components.
Technical Details
- Manufacturer part number: 150-Q-10120K
- Pad type: BP-Q replacement brake pad set

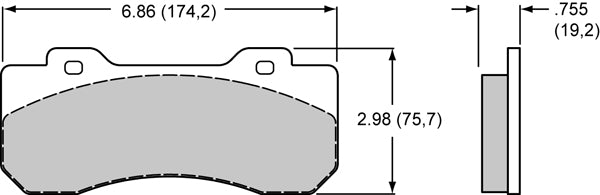

- Pad profile: 10120
- Quantity: 4 pads
- Position: Installation-dependent; confirm the actual caliper application
- Nominal thickness (Wilwood specification): .755 inch
- Compatible rotor material: Steel, Iron
- Compound application: Street use, custom show cars, street rods, muscle cars and compatible truck/SUV kits

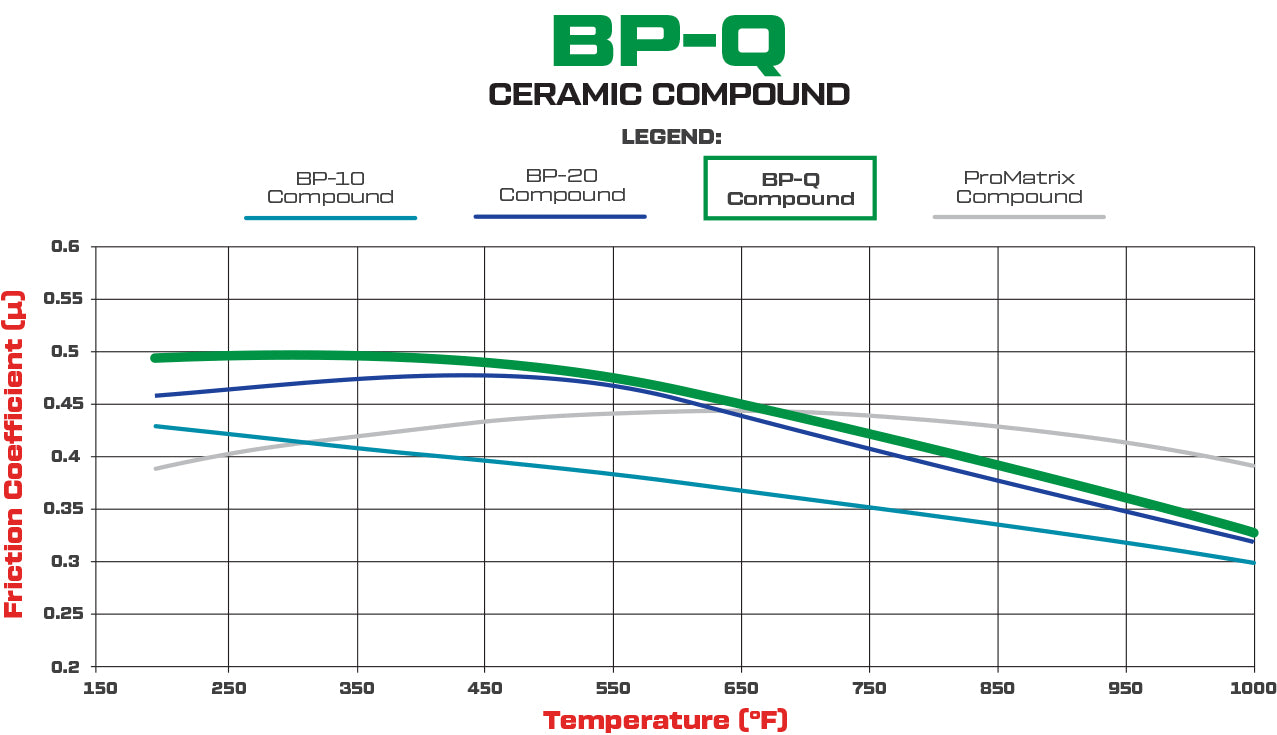

- Friction characteristics: Ceramic-based medium-friction formulation, with a smooth initial response and low wear at low temperatures.
- Caliper selection: Listed TX4R, TX6R and TX6-DM calipers using the 10120 plate
- Pad area: 12.69 sq in
- Pad volume: 6.81 cu in
- Factory bedded: No
- Published weight: 8.000 lb
- Wilwood dust rating: Very Low
- Wilwood noise rating: Very Low
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Fitment & Compatibility
Identify the exact TX4R, TX6R or TX6-DM caliper and verify its pad space and iron or steel rotor. A caliper-family match does not establish a vehicle, axle position or suitability for every severe-duty operating condition.
Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference
For help checking this application, contact PMB Performance with the vehicle and installed brake details. Our team draws on over 20 years of experience with parts and brake fitment.
