Product details

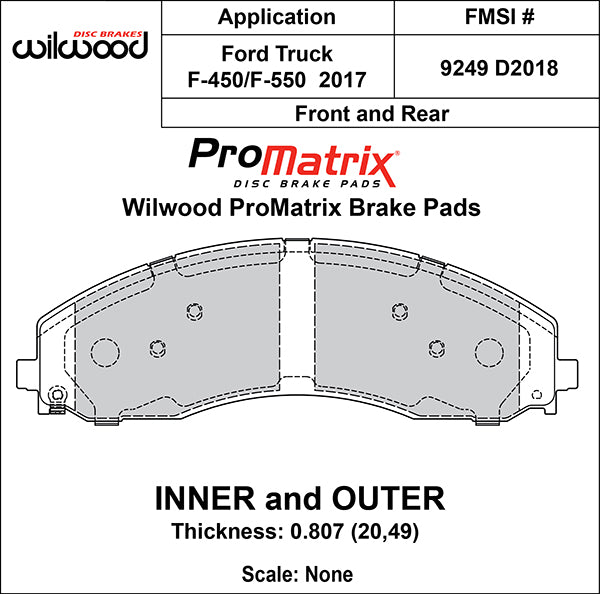

Wilwood's D2018 drawing identifies a Ford F-450/F-550 front and rear pad profile with a nominal 0.807-inch thickness. This ProMatrix set is selected by the installed caliper and backing plate, not by assuming every chassis in those weight classes shares the illustrated brakes. The Wilwood range brings together calipers, brake rotors, master cylinders, valves, fittings and brake lines for complete-system component selection. Wilwood Engineering was founded by Bill Wood in 1977, is based in Camarillo, California, and designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 150-D2018K
- Pad type: ProMatrix replacement brake pad set
- Pad profile: D2018
- Quantity: 4 pads
- Position: Front/Rear
- Nominal thickness (Wilwood specification): .807 inch
- Compatible rotor material: Steel, Iron
- Compound application: Street, autocross and track-day applications
- Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
- Factory bedded: No
- Published weight: 9.000 lb
- Wilwood dust rating: Low to Moderate
- Wilwood noise rating: Low
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Fitment & Compatibility
The drawing's vehicle reference is 2017 F-450 and F-550. Confirm axle position, chassis configuration and pad retention directly; the caption is not a complete year-and-option application catalog.
Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference
PMB Performance has more than 20 years of experience helping customers identify the correct brake components. For a modified system, provide the caliper model and pad measurements alongside the vehicle details.
