Wilwood Front 0.60-Inch ProMatrix Pad Set for Ford Mustang with D1792 Brembo-Profile Calipers (2015–2023)

The D1792 front profile is listed for selected 2015–2023 Mustang performance-brake applications, including specified Brembo packages. This ProMatrix set is nominally 0.60 inch thick and must match the actual front caliper rather than the trim name alone. Wilwood Engineering was founded in 1977 by Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications. Each part is selected to match the complete brake system.

Technical Details

• Manufacturer part number: 150-D1792K
• Pad type: ProMatrix replacement brake pad set

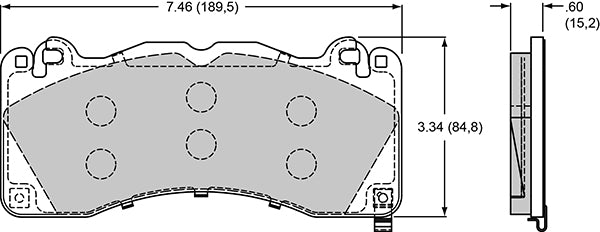

• Pad profile: D1792
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .60 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Pad area: 15.9 sq in
• Pad volume: 7.66 cu in
• Factory bedded: No
• Published weight: 7.900 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Read the GT, GT Premium, 50 Years Anniversary Edition, Bullitt and Mach 1 entries with their brake qualifications. Wilwood also lists the SX6R caliper for this profile; a converted installation must be checked against that caliper's pad requirements separately.

Application coverage, subject to the brake and equipment qualifications below: Ford Mustang (2015–2023).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

With over 20 years of experience, PMB Performance can help compare the pad profile with your brake configuration. Include the vehicle year, brake package and clear caliper details when requesting a fitment check.

Vehicle Applications
