Wilwood Rear ProMatrix D1602 Pads for Selected Ford F-150 Manual-Parking-Brake Applications (2012–2018)

The D1602 ProMatrix rear pad is nominally 0.655 inch thick for the F-150 configurations listed here. Manual parking-brake qualification is important on later rows and should not be omitted when the same trim is available with different brake equipment. The manufacturer is Wilwood Engineering, established by Bill Wood in 1977 and based in Camarillo, California. Wilwood designs and manufactures disc brake systems for motorsport, street-performance and specialized applications, supplying calipers, brake rotors, master cylinders, valves, fittings and brake lines whose selection must suit the complete brake system.

Technical Details

• Manufacturer part number: 150-D1602K
• Pad type: ProMatrix replacement brake pad set

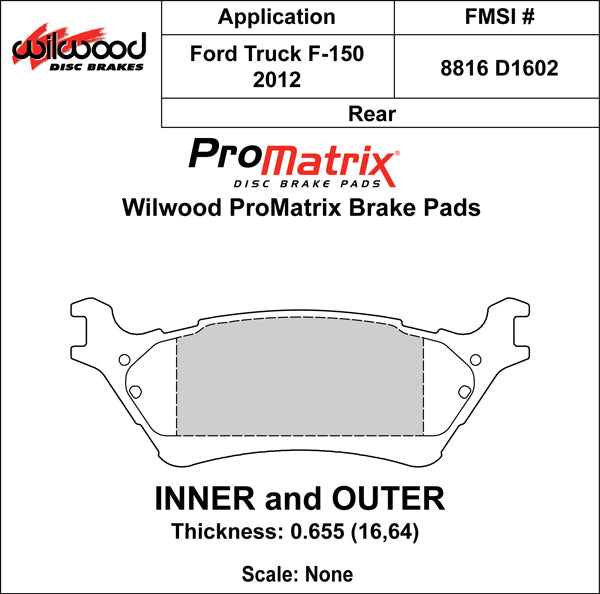

• Pad profile: D1602
• Quantity: 4 pads
• Position: Rear
• Nominal thickness (Wilwood specification): .655 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications

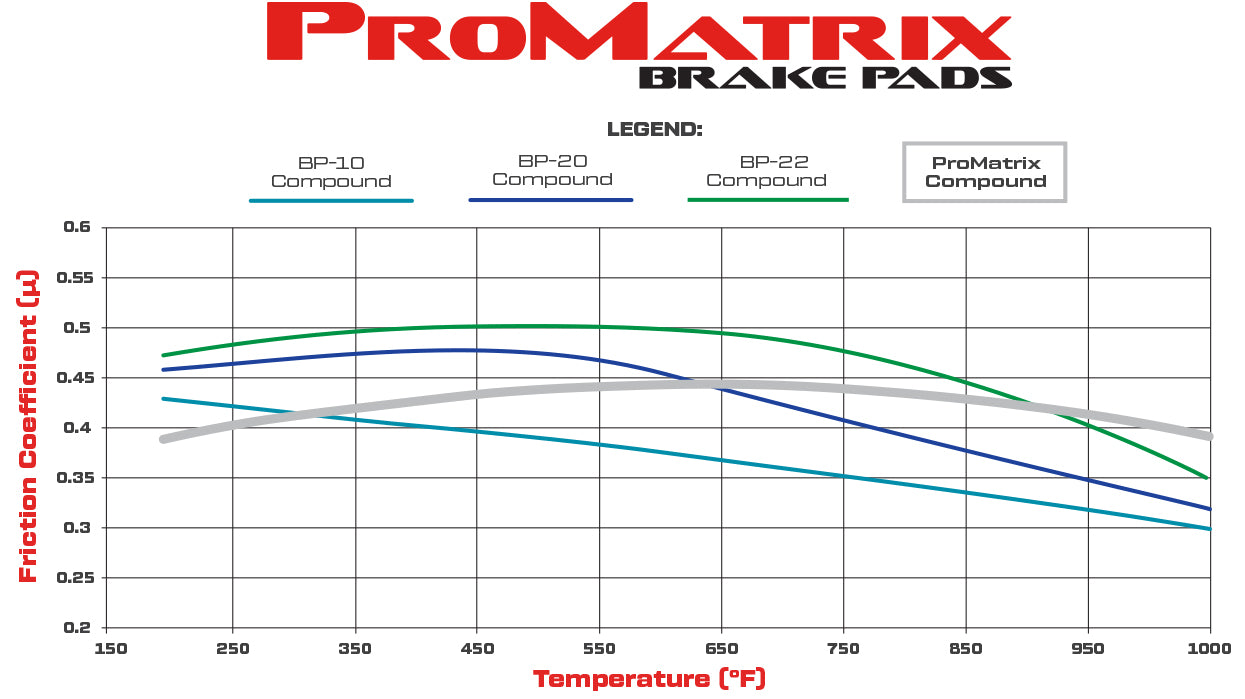

• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 3.800 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Check drivetrain, lug count, trim and parking-brake actuation against the individual 2012–2018 entry. The presence of Raptor and other named packages does not establish every F-150 rear caliper for those years.

Application coverage, subject to the brake and equipment qualifications below: Ford F-150 (2012–2018).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

For help checking this application, contact PMB Performance with the vehicle and installed brake details. Our team draws on over 20 years of experience with parts and brake fitment.

Vehicle Applications
