Wilwood Front ProMatrix D1414 Pads for Ford F-150 (2010–2017), Expedition and Lincoln Navigator (2010–2015)

The D1414 front pad serves the listed Ford truck and Lincoln SUV brake packages at a nominal 0.715-inch ProMatrix thickness. The F-150 coverage includes multiple trim, lug-count and parking-brake combinations, each tied to its own year entry. Established in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form its component range, with individual parts chosen to match the complete system rather than considered in isolation.

Technical Details

• Manufacturer part number: 150-D1414K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D1414
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .715 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 6.800 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

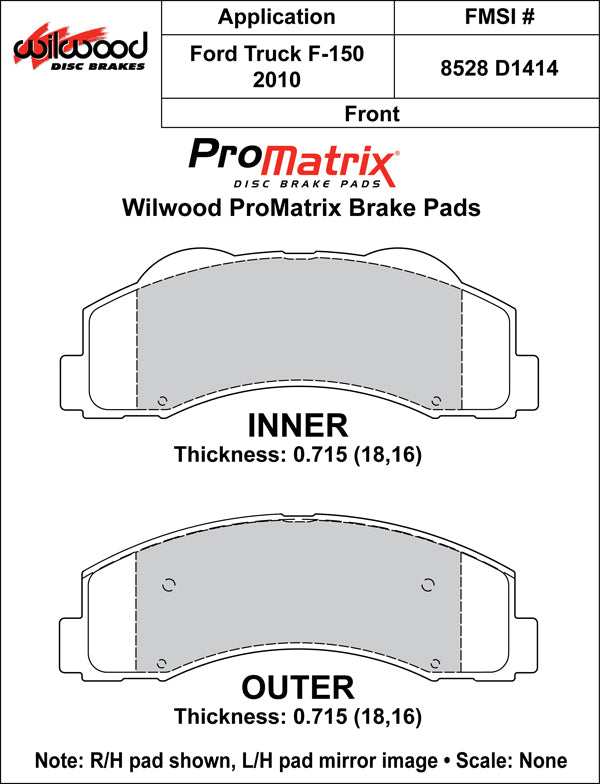

• Drawing thickness, inner / outer: .715 / .715 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Read six- or seven-lug, two- or four-wheel-drive and manual or electronic parking-brake details where shown. The F-150 range continues through 2017, while Expedition and Navigator end in 2015 in this listing.

Application coverage, subject to the brake and equipment qualifications below: Ford Expedition (2010–2015); Ford F-150 (2010–2017); Lincoln Navigator (2010–2015).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

PMB Performance brings over 20 years of brake and parts experience to fitment checks. Send your vehicle details and caliper identification if you need help confirming this pad selection.

Vehicle Applications
