Wilwood Rear ProMatrix D1400 Pads for Dodge Ram 2500/3500 (2009–2010) and Ram 2500/3500 (2011–2018)

The D1400 ProMatrix rear pattern spans the listed Dodge Ram and later Ram-branded heavy-duty pickups. A nominal 0.75-inch thickness is supplied, while single- and dual-rear-wheel descriptions and specific trim entries identify the applicable brake configurations. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Those components need to be selected together around the complete brake system's requirements.

Technical Details

• Manufacturer part number: 150-D1400K
• Pad type: ProMatrix replacement brake pad set

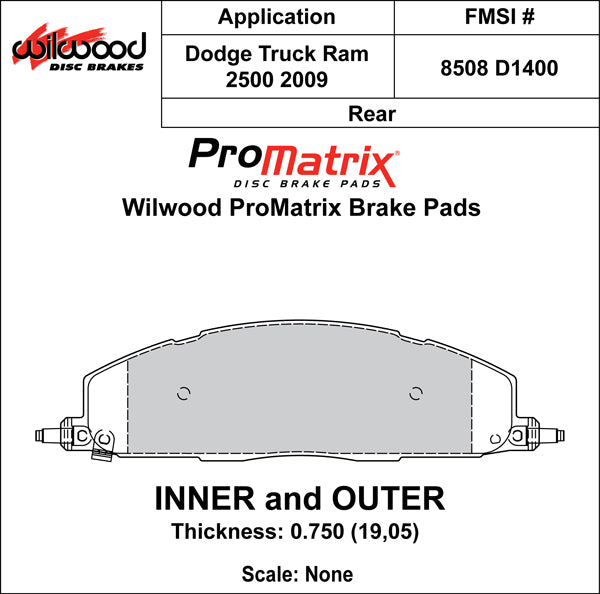

• Pad profile: D1400
• Quantity: 4 pads
• Position: Rear
• Nominal thickness (Wilwood specification): .75 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 6.200 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Keep the Dodge-branded 2009–2010 rows and Ram-branded 2011–2018 rows tied to the correct 2500 or 3500 model. Match the rear caliper on the actual truck, including Power Wagon and other named trim qualifications where present.

Application coverage, subject to the brake and equipment qualifications below: Ram 2500 (2011–2018); Dodge Ram 2500 (2009–2010); Ram 3500 (2011–2018); Dodge Ram 3500 (2009–2010).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

For help checking this application, contact PMB Performance with the vehicle and installed brake details. Our team draws on over 20 years of experience with parts and brake fitment.

Vehicle Applications
