Wilwood Front ProMatrix D1392 Brake Pads for Ford F-150 (2009)

The D1392 set is the ProMatrix front-pad profile listed for the 2009 Ford F-150. Its nominal 0.79-inch thickness and distinct illustrated outline make it a separate selection from pads listed for neighboring F-150 production years. For Wilwood Engineering, component selection forms part of matching a complete brake system to its application. Founded in 1977 by Bill Wood and based in Camarillo, California, the company designs and manufactures disc brake systems and a range of calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.

Technical Details

• Manufacturer part number: 150-D1392K
• Pad type: ProMatrix replacement brake pad set

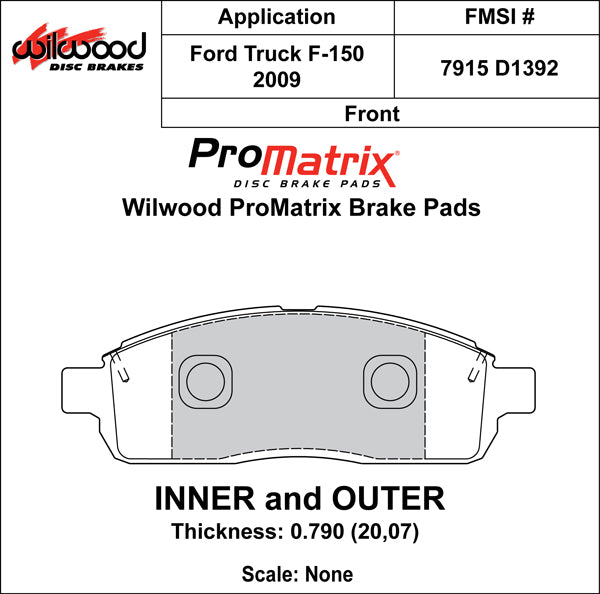

• Pad profile: D1392
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .79 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 5.700 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Verify the actual front caliper and retention features on the truck. This single-year application should not be broadened to 2008 or 2010 solely because the model name remains F-150.

Application coverage, subject to the brake and equipment qualifications below: Ford F-150 (2009).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

PMB Performance has more than 20 years of experience helping customers identify the correct brake components. For a modified system, provide the caliper model and pad measurements alongside the vehicle details.

Vehicle Applications
