Wilwood Rear ProMatrix D1352 Pads for Chevrolet Caprice (2011–2014) and Pontiac G8 (2008–2009)

The D1352 rear profile serves the Caprice and G8 applications listed here, with a nominal 0.615-inch ProMatrix thickness. The pad selection follows the rear caliper and remains separate from front brake differences between performance trims. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California, where it designs and manufactures disc brake systems and components. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications, with each component selected to suit the complete brake system.

Technical Details

• Manufacturer part number: 150-D1352K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D1352
• Quantity: 4 pads
• Position: Rear
• Nominal thickness (Wilwood specification): .615 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 2.500 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

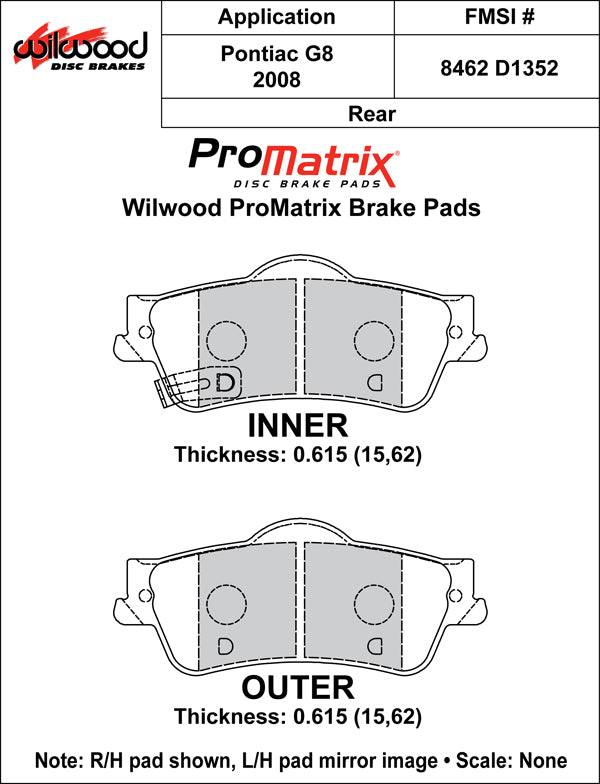

• Drawing thickness, inner / outer: .615 / .615 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Confirm Caprice 2011–2014 or G8 2008–2009 coverage with its applicable Base, GT or GXP entry. Compare the existing rear pads before ordering if the vehicle has received a brake conversion.

Application coverage, subject to the brake and equipment qualifications below: Chevrolet Caprice (2011–2014); Pontiac G8 (2008–2009).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

Use PMB Performance's 20-plus years of experience when the fitted brake package is uncertain. A caliper reference and comparison with the removed pad are useful alongside the vehicle's year and model.
