Wilwood Rear ProMatrix D1329 Pads for E-150, E-250 and E-350 Super Duty (2008–2013) — Inner/Outer Set

The D1329 rear set is specified with two thicknesses: 0.67 inch for the inner pad and 0.60 inch for the outer. This ProMatrix configuration is listed for E-150, E-250 and E-350 Super Duty brakes, with both plate shapes important to the service match. Wilwood Engineering is a designer and manufacturer of disc brake systems and components, founded by Bill Wood in 1977 and based in Camarillo, California. Calipers, brake rotors, master cylinders, valves, fittings and brake lines support its motorsport, street-performance and specialized applications. Each is selected according to the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 150-D1329K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D1329
• Quantity: 4 pads
• Position: Rear
• Nominal thickness (Wilwood specification): .67 / .60 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 5.600 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

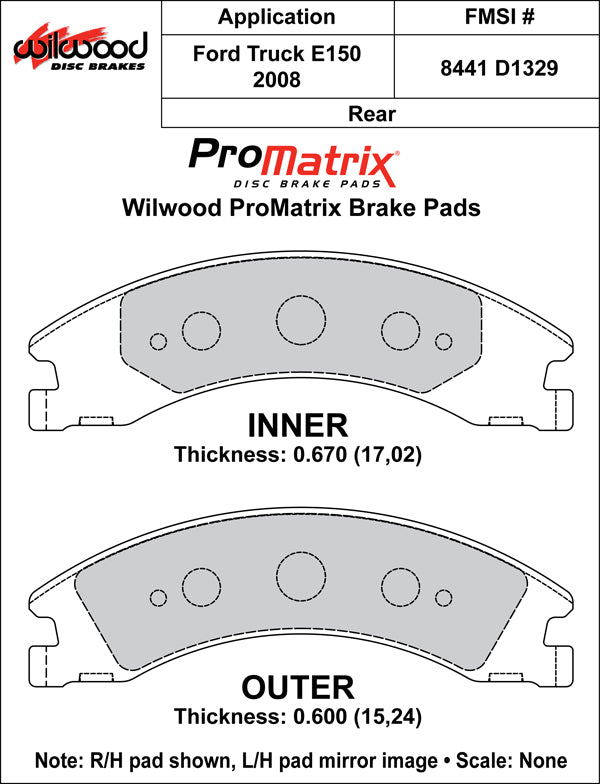

• Drawing thickness, inner / outer: .670 / .600 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Check the retained rear caliper on the 2008–2013 van and compare inner and outer pads separately. E-450 Super Duty rear brakes use a different listed selection and are not established by this D1329 application.

Application coverage, subject to the brake and equipment qualifications below: Ford E-150 (2008–2013); Ford E-250 (2008–2013); Ford E-350 Super Duty (2008–2013).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

PMB Performance has more than 20 years of experience helping customers identify the correct brake components. For a modified system, provide the caliper model and pad measurements alongside the vehicle details.

Vehicle Applications
