Wilwood Front ProMatrix D1328 Pads for Ford E-150, E-250, E-350 Super Duty and E-450 Super Duty (2008–2013)

This D1328 ProMatrix front set is nominally 0.735 inch thick for the listed 2008–2013 Ford E-Series brake packages. The common front profile covers several weight classes, while the rear pad selection differs between them. Bill Wood founded Wilwood Engineering in 1977. From its base in Camarillo, California, Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized use, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Compatibility with the complete brake system governs selection of the individual components.

Technical Details

• Manufacturer part number: 150-D1328K
• Pad type: ProMatrix replacement brake pad set

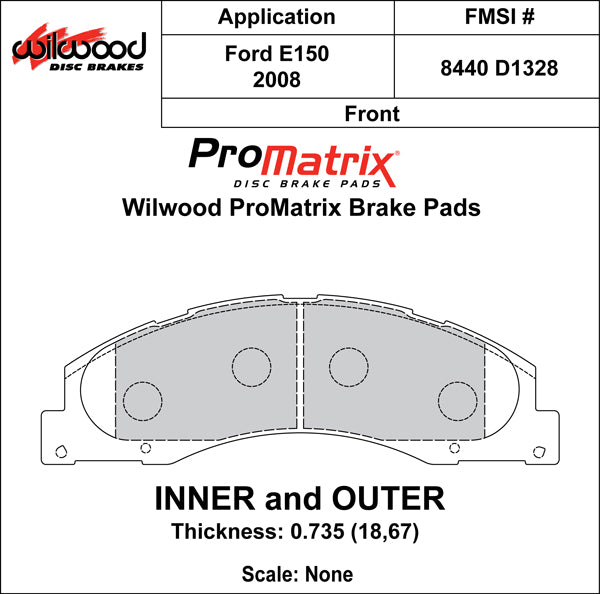

• Pad profile: D1328
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .735 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 7.500 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Confirm the exact E-Series designation and gas-engine condition where specified. Front-profile coverage across E-150 through E-450 does not imply that their rear calipers or rear pads are interchangeable.

Application coverage, subject to the brake and equipment qualifications below: Ford E-150 (2008–2013); Ford E-250 (2008–2013); Ford E-350 Super Duty (2008–2013); Ford E-450 Super Duty (2008–2013).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

With over 20 years of experience, PMB Performance can help compare the pad profile with your brake configuration. Include the vehicle year, brake package and clear caliper details when requesting a fitment check.
