Wilwood Rear DRW ProMatrix Pad Set for Sprinter 3500 — Mercedes-Benz/Freightliner (2010–2012), Dodge (2007–2009)

For the listed dual-rear-wheel Sprinter 3500 brakes, the D1318 ProMatrix pad is nominally 0.785 inch thick. This is a rear-disc service set selected for the DRW brake arrangement, not simply by the 3500 badge. Wilwood Engineering was founded in 1977 by Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications. Each part is selected to match the complete brake system.

Technical Details

• Manufacturer part number: 150-D1318K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D1318
• Quantity: 4 pads
• Position: Rear
• Nominal thickness (Wilwood specification): .785 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 5.800 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

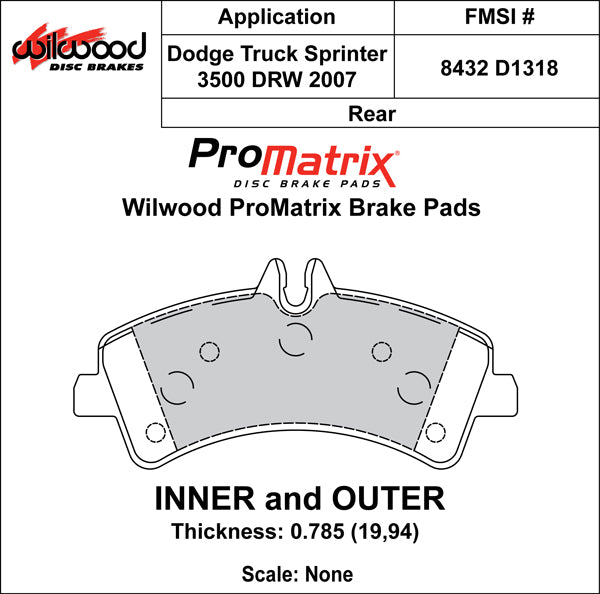

Check Dodge branding for 2007–2009 and Mercedes-Benz or Freightliner for 2010–2012. Where a row states DRW, verify that equipment on the vehicle and compare the actual rear caliper with the D1318 pad drawing.

Application coverage, subject to the brake and equipment qualifications below: Freightliner Sprinter 3500 (2010–2012); Mercedes-Benz Sprinter 3500 (2010–2012); Dodge Sprinter 3500 (2007–2009).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

Use PMB Performance's 20-plus years of experience when the fitted brake package is uncertain. A caliper reference and comparison with the removed pad are useful alongside the vehicle's year and model.

Vehicle Applications
