Wilwood Rear ProMatrix D1317 Pads for Selected Sprinter 2500 (2007–2012) and Single-Rear-Wheel Sprinter 3500 (2010–2011)

The D1317 rear set is the nominal 0.75-inch ProMatrix selection for the listed Sprinter 2500 and single-rear-wheel 3500 applications. Rear-wheel configuration distinguishes it from the D1318 pad listed for dual-rear-wheel 3500 brakes. The complete brake system's requirements guide the selection of individual Wilwood components. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines.

Technical Details

• Manufacturer part number: 150-D1317K
• Pad type: ProMatrix replacement brake pad set

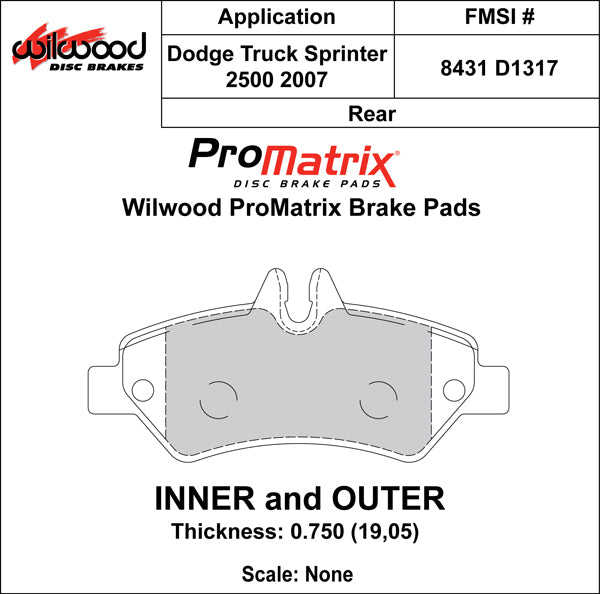

• Pad profile: D1317
• Quantity: 4 pads
• Position: Rear
• Nominal thickness (Wilwood specification): .75 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 3.600 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Dodge Sprinter 2500 coverage is 2007–2009; Mercedes-Benz and Freightliner 2500 entries are 2010–2012. The listed 3500 SRW applications under those latter brands cover 2010–2011 only, so confirm both the vehicle designation and wheel arrangement.

Application coverage, subject to the brake and equipment qualifications below: Freightliner Sprinter 2500 (2010–2012); Freightliner Sprinter 3500 (2010–2011); Mercedes-Benz Sprinter 2500 (2010–2012); Dodge Sprinter 2500 (2007–2009); Mercedes-Benz Sprinter 3500 (2010–2011).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

For help checking this application, contact PMB Performance with the vehicle and installed brake details. Our team draws on over 20 years of experience with parts and brake fitment.

Vehicle Applications
