Wilwood Rear Disc Brake Pad Set for Mazda MX-5 Miata NC (2006–2015) — ProMatrix, 0.54-Inch

The D1180 ProMatrix rear set is nominally 0.54 inch thick for the listed NC Miata brake applications. Rear-pad selection remains a separate hardware check when a car retains its rear calipers but has modified front brakes. Established in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form its component range, with individual parts chosen to match the complete system rather than considered in isolation.

Technical Details

• Manufacturer part number: 150-D1180K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D1180
• Quantity: 4 pads
• Position: Rear
• Nominal thickness (Wilwood specification): .54 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 2.000 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

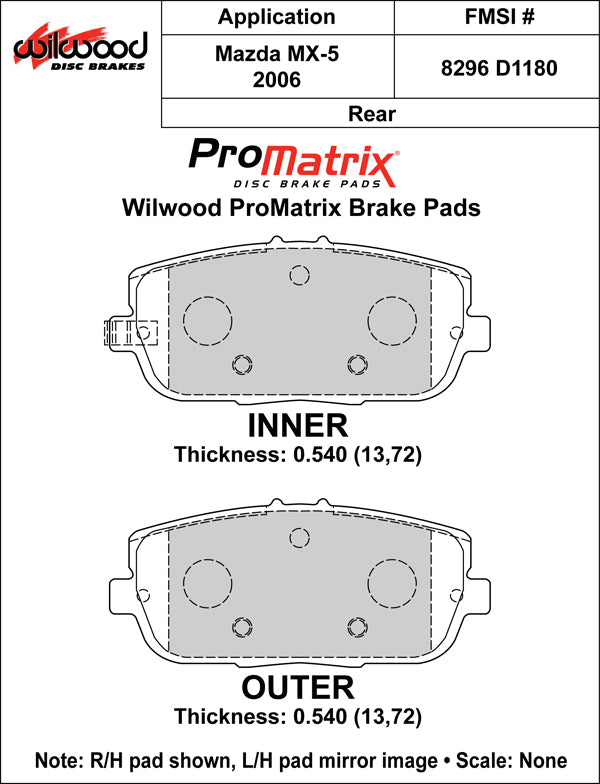

• Drawing thickness, inner / outer: .540 / .540 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Coverage is for the 2006–2015 MX-5 Miata configurations shown below. Match the rear backing plate and retaining details, including the listed Sport, Club, Grand Touring and Anniversary models, without borrowing a front-kit application claim.

Application coverage, subject to the brake and equipment qualifications below: Mazda MX-5 Miata (2006–2015).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

For help checking this application, contact PMB Performance with the vehicle and installed brake details. Our team draws on over 20 years of experience with parts and brake fitment.
