Wilwood Front ProMatrix Pads for Listed Sierra/Silverado 1500, Yukon/Yukon XL 1500, Escalade/ESV/EXT, Avalanche and Suburban 1500 (2007), Plus Tahoe (2007–2008) Six-Lug Brakes

The D1092 set provides nominal 0.71-inch ProMatrix front pads for the listed New Style GM truck and SUV brake packages. Police equipment and finger-clip details appear in certain entries and must be checked on the installed pad. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Those components need to be selected together around the complete brake system's requirements.

Technical Details

• Manufacturer part number: 150-D1092K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D1092
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .71 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 6.100 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

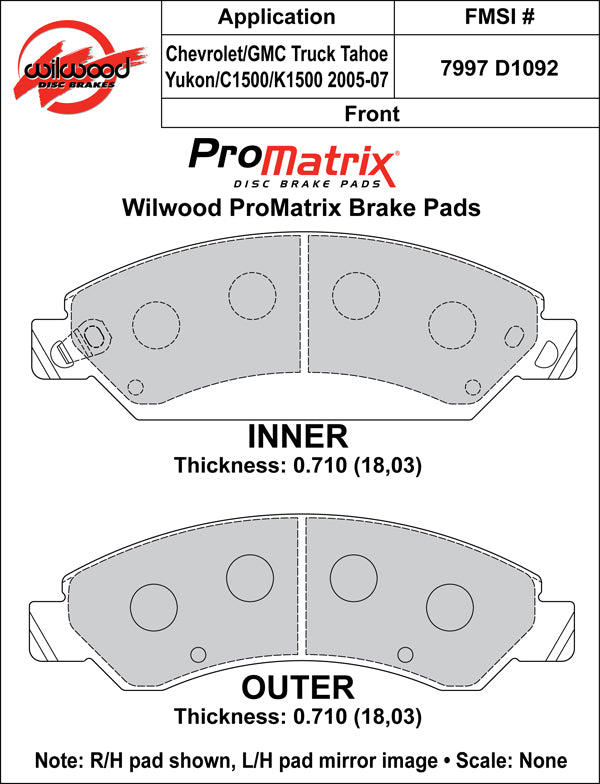

• Drawing thickness, inner / outer: .710 / .710 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Most model coverage is 2007, with Tahoe entries extending into 2008. Silverado, Sierra, Suburban, Yukon variants, Avalanche and Escalade variants have their own rows; the six-lug description does not establish every front-pad configuration.

Application coverage, subject to the brake and equipment qualifications below: Chevrolet Tahoe (2007–2008); GMC Sierra 1500 Pickup (2007); GMC Yukon (2007); GMC Yukon XL 1500 (2007); Cadillac Escalade (2007); Cadillac Escalade ESV (2007); Cadillac Escalade EXT (2007); Chevrolet Avalanche (2007); Chevrolet Silverado 1500 Pickup (2007); Chevrolet Suburban 1500 (2007).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

With over 20 years of experience, PMB Performance can help compare the pad profile with your brake configuration. Include the vehicle year, brake package and clear caliper details when requesting a fitment check.
