Wilwood Front ProMatrix D1075 Pads for Selected Allure, LaCrosse, Terraza, Grand Prix, Montana SV6, Uplander and Relay (2005–2009)

The D1075 front pattern is shared by the listed GM sedan and minivan brake packages. Wilwood publishes a nominal ProMatrix thickness of 0.67 inch and a drawing value of 0.665 inch; both describe the references available for checking the pad. Wilwood Engineering designs and manufactures disc brake systems from its base in Camarillo, California. Bill Wood founded the company in 1977; its range now includes calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Component selection must account for the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 150-D1075K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D1075
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .67 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 4.600 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

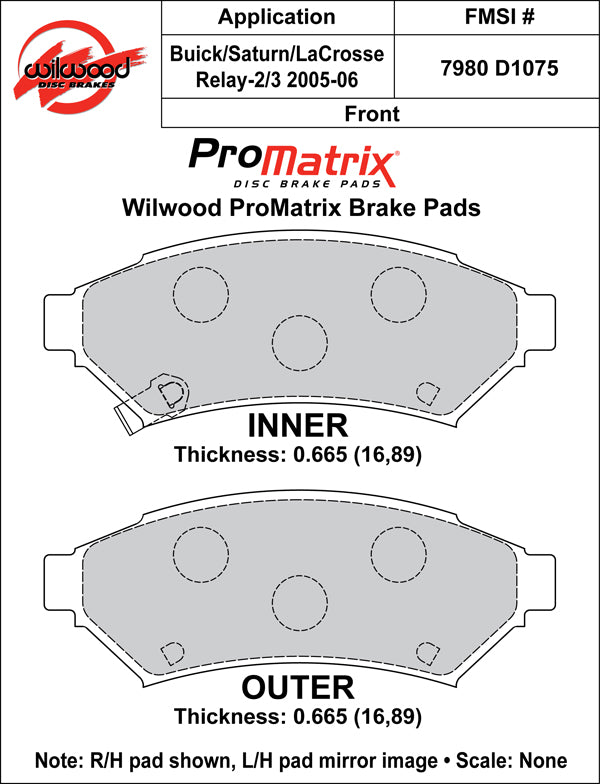

• Drawing thickness, inner / outer: .665 / .665 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Use the model-specific dates and V6 or SV6 qualifications below. Where Super is excluded, that exception remains necessary even if the Allure or LaCrosse model and year otherwise match.

Application coverage, subject to the brake and equipment qualifications below: Buick Allure (2005–2009); Buick Lacrosse (2005–2009); Buick Terraza (2005–2007); Pontiac Grand Prix (2005–2008); Pontiac Montana SV6 (2005–2009); Chevrolet Uplander (2005–2009); Saturn Relay (2005–2007).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

For help checking this application, contact PMB Performance with the vehicle and installed brake details. Our team draws on over 20 years of experience with parts and brake fitment.

Vehicle Applications
