Wilwood Front ProMatrix D1069 Pads for F-250 Super Duty (2005–2011), F-350 Super Duty (2005–2012) and F-450 Super Duty (2011)

At a nominal 0.81 inch thick, this D1069 ProMatrix set is a specific front-pad choice within the Super Duty family. The application differentiates frame and wheel configurations, and it is not the thinner D1069B service set used in another production split. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California, where it designs and manufactures disc brake systems and components. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications, with each component selected to suit the complete brake system.

Technical Details

• Manufacturer part number: 150-D1069K
• Pad type: ProMatrix replacement brake pad set

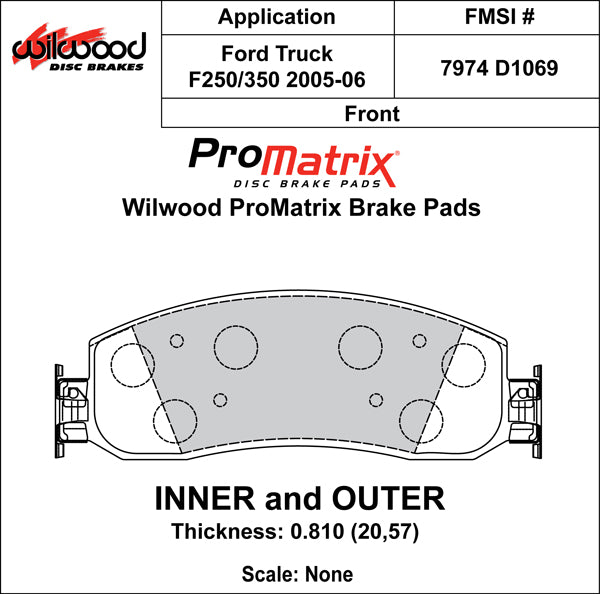

• Pad profile: D1069
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .81 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications

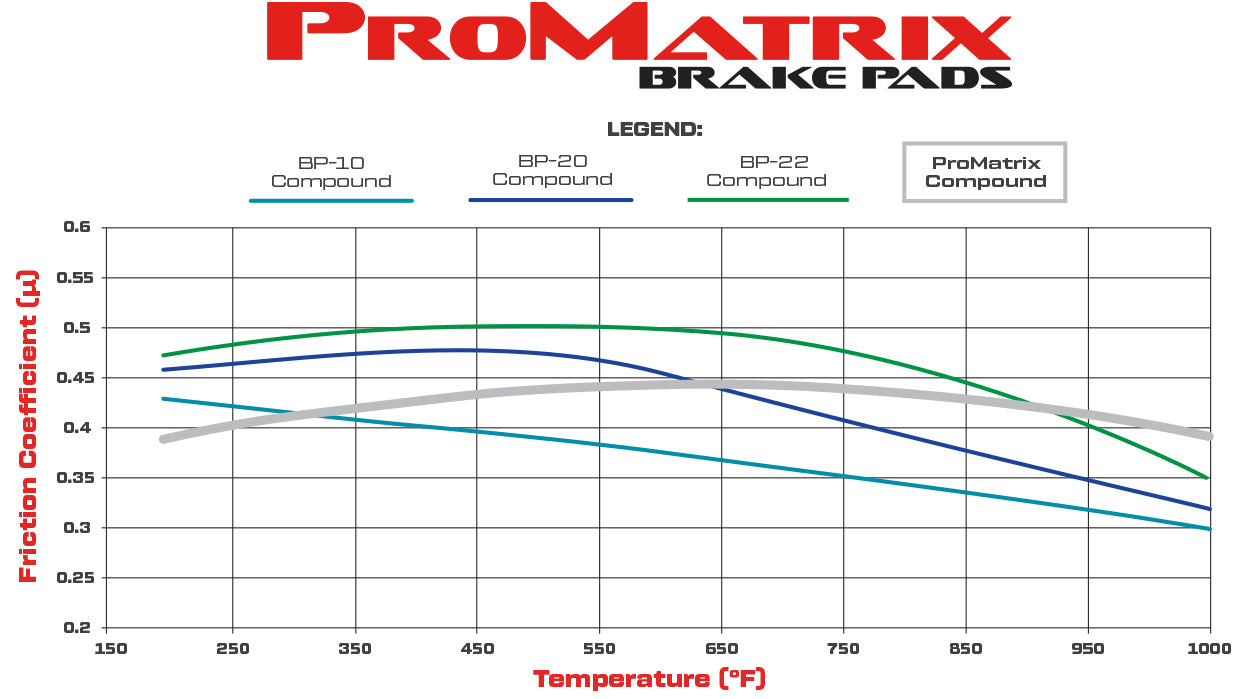

• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 6.300 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Check the July 2007 build transition and January 2012 limit where listed. F-450 coverage is 2011 only here and excludes cab-and-chassis in the applicable row; retain the separate F-250 and F-350 year ranges.

Application coverage, subject to the brake and equipment qualifications below: Ford F-250 Super Duty (2005–2011); Ford F-350 Super Duty (2005–2012); Ford F-450 Super Duty (2011).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

PMB Performance has more than 20 years of experience helping customers identify the correct brake components. For a modified system, provide the caliper model and pad measurements alongside the vehicle details.

Vehicle Applications
