Wilwood Front ProMatrix D1069B Pads for Ford F-250 Super Duty (2012) — Listed Early-Build Brakes

This D1069B ProMatrix front set is the thinner 0.69-inch specification listed for early-build 2012 F-250 Super Duty applications. The production split is central to selection because other pads are listed within the same model year. Based in Camarillo, California, Wilwood Engineering was founded by Bill Wood in 1977. Its work includes the design and manufacture of disc brake systems, calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Component choice must suit the complete brake system, including its intended use and mating hardware.

Technical Details

• Manufacturer part number: 150-D1069BK
• Pad type: ProMatrix replacement brake pad set

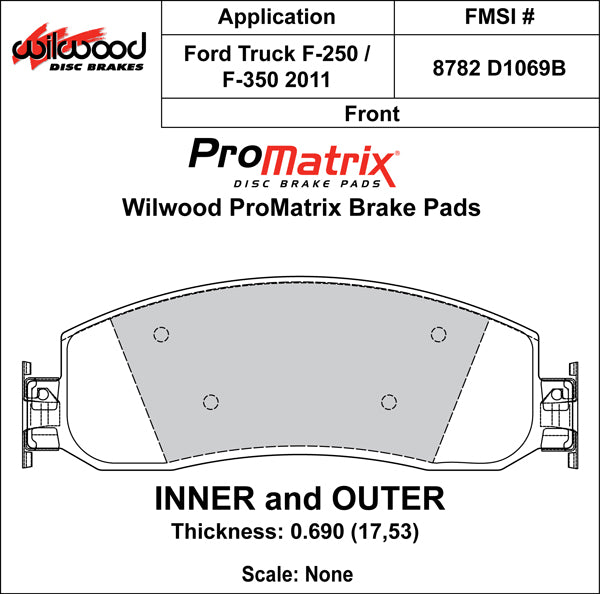

• Pad profile: D1069B
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .69 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 6.100 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Both two- and four-wheel-drive rows specify production to January 9, 2012. Confirm the vehicle build record and installed front caliper before selecting this set, particularly if components have been replaced since manufacture.

Application coverage, subject to the brake and equipment qualifications below: Ford F-250 Super Duty (2012).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

With over 20 years of experience, PMB Performance can help compare the pad profile with your brake configuration. Include the vehicle year, brake package and clear caliper details when requesting a fitment check.

Vehicle Applications
