Wilwood Rear ProMatrix D1067 Pads for F-350 Super Duty (2005–2010) and F-250 Super Duty (2008–2010)

The D1067 rear pad is the nominal 0.71-inch ProMatrix specification for these Super Duty applications. It differs substantially in thickness from the later D1067A set, so the shared basic profile name must not replace a caliper and pad-space check. Wilwood Engineering is a designer and manufacturer of disc brake systems and components, founded by Bill Wood in 1977 and based in Camarillo, California. Calipers, brake rotors, master cylinders, valves, fittings and brake lines support its motorsport, street-performance and specialized applications. Each is selected according to the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 150-D1067K
• Pad type: ProMatrix replacement brake pad set

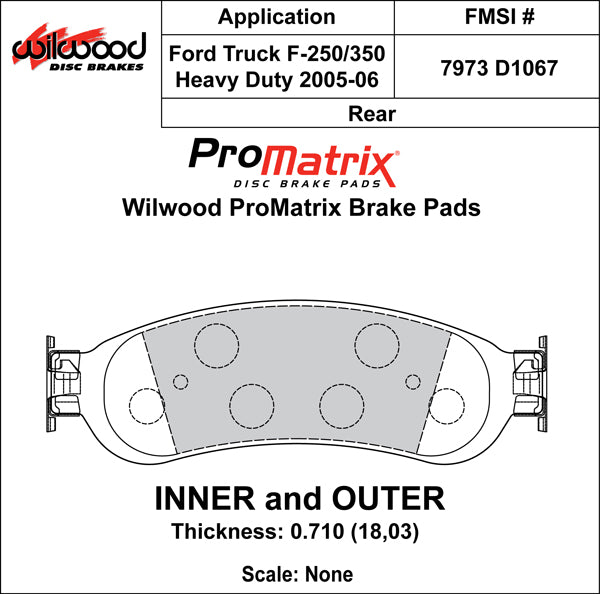

• Pad profile: D1067
• Quantity: 4 pads
• Position: Rear
• Nominal thickness (Wilwood specification): .71 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 5.000 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Follow the single- or dual-rear-wheel and drivetrain entries, including the July 29/July 30, 2007 production transition where specified. F-350 coverage begins in 2005, while the listed F-250 applications begin in 2008.

Application coverage, subject to the brake and equipment qualifications below: Ford F-350 Super Duty (2005–2010); Ford F-250 Super Duty (2008–2010).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

PMB Performance brings over 20 years of brake and parts experience to fitment checks. Send your vehicle details and caliper identification if you need help confirming this pad selection.

Vehicle Applications
