Wilwood Rear ProMatrix D1067A Pads for F-250, F-350 and F-450 Super Duty (2011–2012)

This D1067A ProMatrix rear set is nominally 0.565 inch thick for the listed 2011–2012 Super Duty brake configurations. Frame width, rear-wheel arrangement and cab-and-chassis distinctions are essential because the same F-Series weight class can use more than one package. Bill Wood founded Wilwood Engineering in 1977. From its base in Camarillo, California, Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized use, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Compatibility with the complete brake system governs selection of the individual components.

Technical Details

• Manufacturer part number: 150-D1067AK
• Pad type: ProMatrix replacement brake pad set

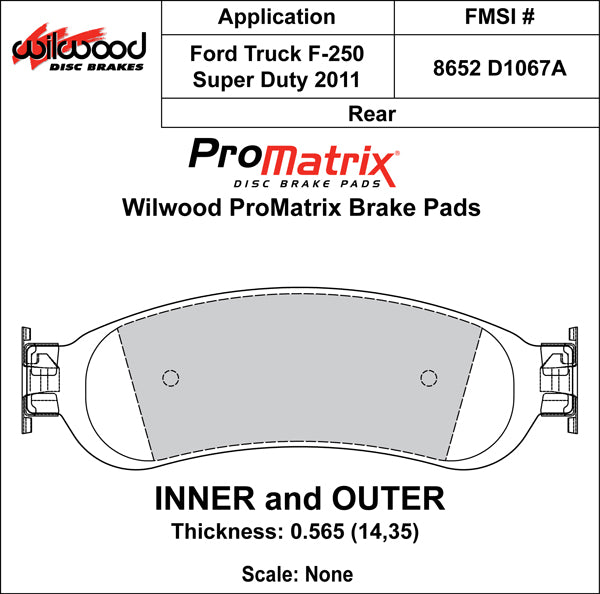

• Pad profile: D1067A
• Quantity: 4 pads
• Position: Rear
• Nominal thickness (Wilwood specification): .565 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 4.600 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Read the production-date split attached to the exact row and verify SRW or DRW equipment. The listed January and December 2012 date references should be checked against the vehicle's build record and rear caliper before selecting the pad.

Application coverage, subject to the brake and equipment qualifications below: Ford F-250 Super Duty (2011–2012); Ford F-350 Super Duty (2011–2012); Ford F-450 Super Duty (2011–2012).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

Use PMB Performance's 20-plus years of experience when the fitted brake package is uncertain. A caliper reference and comparison with the removed pad are useful alongside the vehicle's year and model.

Vehicle Applications
