Wilwood Front ProMatrix D1058 Pads for Selected 300/Charger (2006–2022), Challenger (2009–2012, 2014–2022), Magnum (2006–2008) and Caliber SRT-4 (2008–2009)

The D1058 ProMatrix front profile is listed for selected dual-piston, AWD and other specifically identified brake packages. Its nominal 0.68-inch thickness differs from other front-pad profiles used within the same Chrysler and Dodge model families. The Wilwood range brings together calipers, brake rotors, master cylinders, valves, fittings and brake lines for complete-system component selection. Wilwood Engineering was founded by Bill Wood in 1977, is based in Camarillo, California, and designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications.

Technical Details

• Manufacturer part number: 150-D1058K
• Pad type: ProMatrix replacement brake pad set

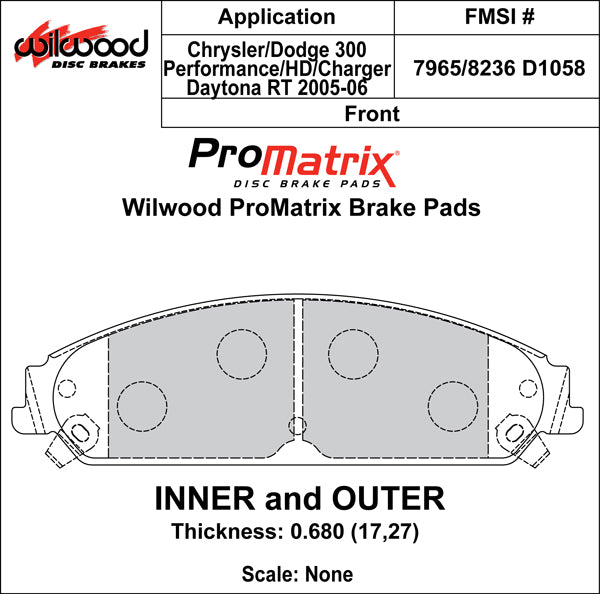

• Pad profile: D1058
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .68 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 5.000 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Check engine and drivetrain against the exact year row, including Pursuit performance-brake exclusions. Caliber coverage is SRT-4 only, and the Challenger list omits 2013; neither condition should be broadened based on a similar trim badge.

Application coverage, subject to the brake and equipment qualifications below: Chrysler 300 (2006–2022); Dodge Challenger (2009–2012, 2014–2022); Dodge Charger (2006–2022); Dodge Caliber (2008–2009); Dodge Magnum (2006–2008).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

For help checking this application, contact PMB Performance with the vehicle and installed brake details. Our team draws on over 20 years of experience with parts and brake fitment.

Vehicle Applications
