Wilwood Rear D1057 ProMatrix Pad Set for Magnum (2005–2008), Charger (2006–2022), Challenger (2009–2022) and 300 (2005–2022)

The D1057 rear set supplies the 0.675-inch ProMatrix specification for the listed Chrysler and Dodge brake packages. The long model coverage includes many equipment combinations, so the appropriate rear caliper remains the decisive match. Wilwood Engineering was founded in 1977 by Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications. Each part is selected to match the complete brake system.

Technical Details

• Manufacturer part number: 150-D1057K
• Pad type: ProMatrix replacement brake pad set

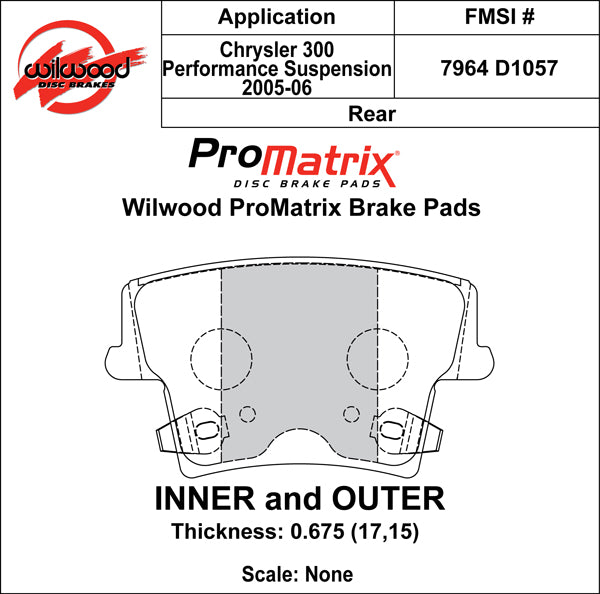

• Pad profile: D1057
• Quantity: 4 pads
• Position: Rear
• Nominal thickness (Wilwood specification): .675 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 2.800 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Follow AWD/RWD, engine and trim details for each row. Pursuit entries that exclude performance brakes and SRT-8 exclusions must remain qualified; the presence of police or R/T applications does not make the set universal across those names.

Application coverage, subject to the brake and equipment qualifications below: Chrysler 300 (2005–2022); Dodge Challenger (2009–2022); Dodge Charger (2006–2022); Dodge Magnum (2005–2008).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

PMB Performance has more than 20 years of experience helping customers identify the correct brake components. For a modified system, provide the caliper model and pad measurements alongside the vehicle details.

Vehicle Applications
