Wilwood Front ProMatrix D1056 Pads for Selected 300 (2005–2022), Challenger (2009–2013, 2015–2020), Charger (2006–2022) and Magnum (2005–2008)

The D1056 ProMatrix front pad is selected for the brake configurations specified by engine, drivetrain and trim in this application. It is nominally 0.71 inch thick and should not be treated as the front pad for every Chrysler 300 or Dodge LX-derived performance model. Since its founding by Bill Wood in 1977, Wilwood Engineering has developed a range serving motorsport, street-performance and specialized brake applications. Based in Camarillo, California, it designs and manufactures disc brake systems, calipers, brake rotors, master cylinders, valves, fittings and brake lines. Each component should be selected for compatibility with the complete braking system.

Technical Details

• Manufacturer part number: 150-D1056K
• Pad type: ProMatrix replacement brake pad set

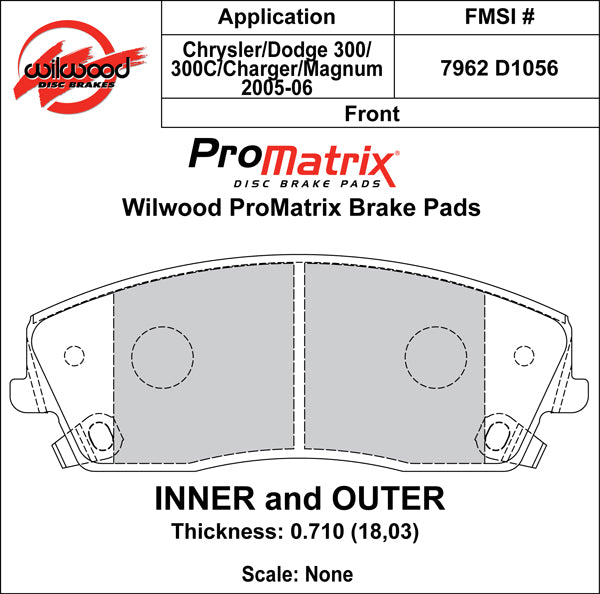

• Pad profile: D1056
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .71 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 4.600 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Use the exact RWD or AWD and engine entry, including SRT-8 exclusions where stated. Challenger coverage contains a 2014 gap and ends in 2020 here, while the 300 and Charger lists continue through 2022.

Application coverage, subject to the brake and equipment qualifications below: Chrysler 300 (2005–2022); Dodge Challenger (2009–2013, 2015–2020); Dodge Charger (2006–2022); Dodge Magnum (2005–2008).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

PMB Performance brings over 20 years of brake and parts experience to fitment checks. Send your vehicle details and caliper identification if you need help confirming this pad selection.

Vehicle Applications
