Wilwood Front ProMatrix Pads for Cobalt (2005–2010), HHR (2008–2010), Sky (2007–2010), G6/Pursuit (2005–2006), Malibu (2004–2006), Solstice (2006–2009), Ion (2004–2007) and G5 (2007–2008)

The D1028 ProMatrix front pattern appears on several GM compact and roadster brake packages, with a nominal 0.74-inch thickness. Supercharged, turbocharged and standard applications must be read individually because a performance trim name does not identify the same caliper across models. A complete brake system depends on compatible component selection. Wilwood Engineering designs and manufactures disc brake systems along with calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized use. Bill Wood founded Wilwood in 1977; the company is based in Camarillo, California.

Technical Details

• Manufacturer part number: 150-D1028K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D1028
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .74 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 3.800 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

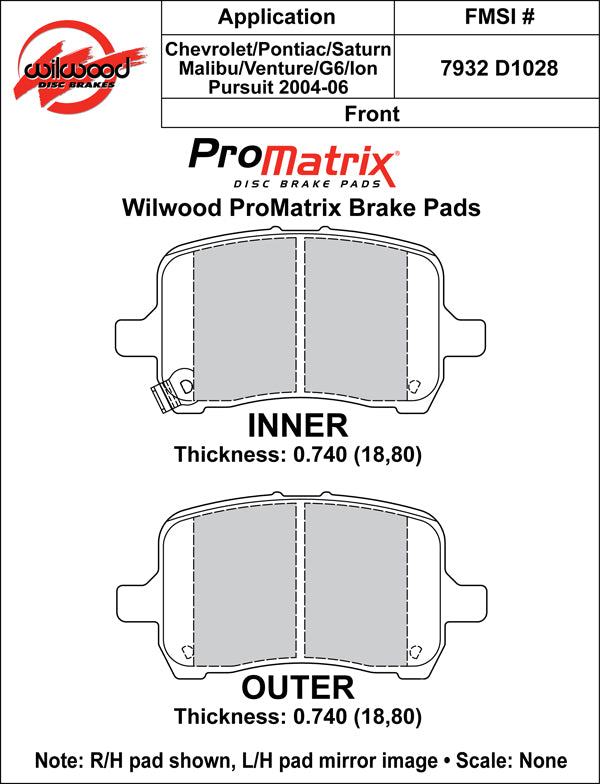

• Drawing thickness, inner / outer: .740 / .740 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Coverage includes Cobalt, HHR, Sky, G6, Pursuit, Malibu, Solstice, Ion and G5. Observe the SS Turbo exclusion where shown, Ion Redline conditions, rear disc or drum references and the fourth-VIN-character Z qualification for New Style Malibu entries.

Application coverage, subject to the brake and equipment qualifications below: Chevrolet Cobalt (2005–2010); Chevrolet HHR (2008–2010); Saturn Sky (2007–2010); Pontiac G6 (2005–2006); Pontiac Pursuit (2005–2006); Chevrolet Malibu (2004–2006); Pontiac Solstice (2006–2009); Saturn Ion (2004–2007); Pontiac G5 (2007–2008).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

For help checking this application, contact PMB Performance with the vehicle and installed brake details. Our team draws on over 20 years of experience with parts and brake fitment.

Vehicle Applications
