Wilwood Rear ProMatrix D996 Pads for Toyota Highlander (2004–2007)

Highlander rear disc applications in this listing use the D996 profile at a nominal 0.605-inch thickness. The ProMatrix set includes year-specific Base, Limited, Sport and Hybrid references rather than a claim covering every later Highlander generation. Established in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form its component range, with individual parts chosen to match the complete system rather than considered in isolation.

Technical Details

• Manufacturer part number: 150-D0996K
• Pad type: ProMatrix replacement brake pad set

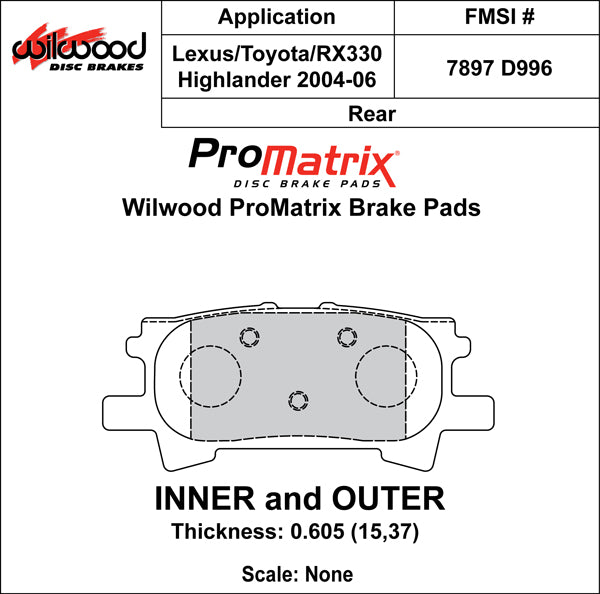

• Pad profile: D996
• Quantity: 4 pads
• Position: Rear
• Nominal thickness (Wilwood specification): .605 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 1.700 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Choose the matching 2004–2007 trim entry and compare the actual rear pad shape. Hybrid and Hybrid Limited coverage should be read in its own row, not inferred from a non-hybrid vehicle with the same body.

Application coverage, subject to the brake and equipment qualifications below: Toyota Highlander (2004–2007).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

With over 20 years of experience, PMB Performance can help compare the pad profile with your brake configuration. Include the vehicle year, brake package and clear caliper details when requesting a fitment check.

Vehicle Applications
