Wilwood Rear ProMatrix D981 Pads for Selected Explorer, Sport Trac, Mountaineer, Liberty, TJ and Wrangler Brakes (2002–2010)

The D981 rear pattern crosses selected Ford, Mercury and Jeep applications, with a nominal 0.55-inch ProMatrix thickness. Those vehicles do not share one continuous year range or every rear-brake option, so the pad must match the actual disc caliper. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Those components need to be selected together around the complete brake system's requirements.

Technical Details

• Manufacturer part number: 150-D0981K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D981
• Quantity: 4 pads
• Position: Rear
• Nominal thickness (Wilwood specification): .55 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 2.600 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

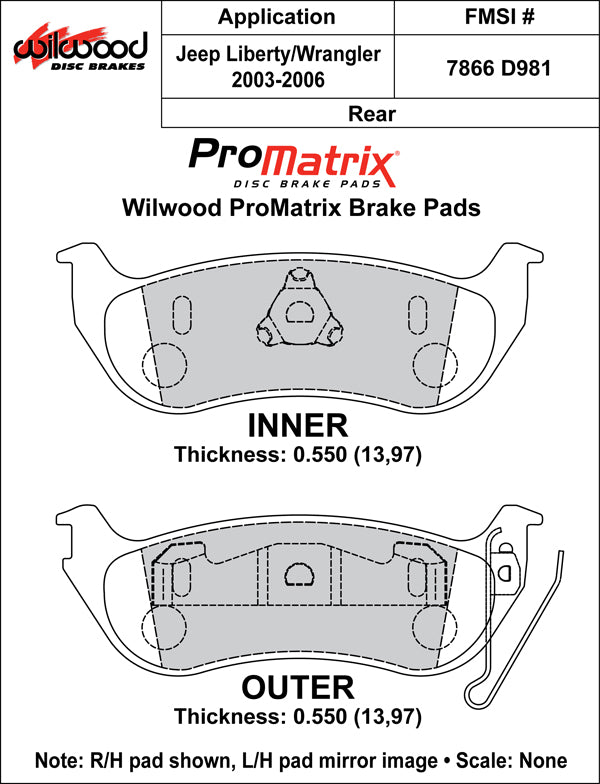

• Drawing thickness, inner / outer: .550 / .550 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Explorer, Explorer Sport Trac and Mountaineer have later coverage than the Jeep Liberty, TJ Series and Wrangler entries. Confirm rear discs and follow each model's year limits rather than applying the overall range to all six names.

Application coverage, subject to the brake and equipment qualifications below: Ford Explorer (2006–2008); Ford Explorer Sport Trac (2007–2008); Jeep Liberty (2002–2007); Jeep TJ Series (2004–2006); Jeep Wrangler (2004–2006); Mercury Mountaineer (2006–2010).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

Use PMB Performance's 20-plus years of experience when the fitted brake package is uncertain. A caliper reference and comparison with the removed pad are useful alongside the vehicle's year and model.
