Product details

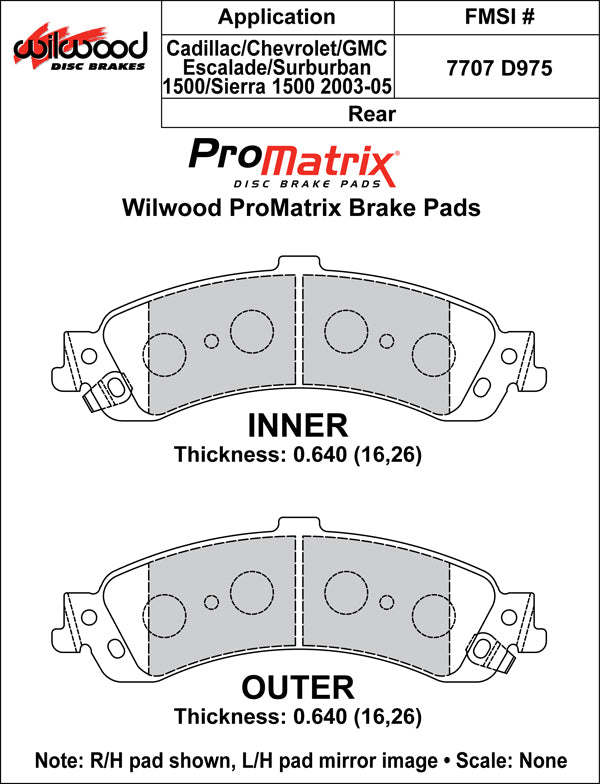

This ProMatrix set uses the D975 rear pad profile illustrated for a GM 1500 truck or SUV brake. Its nominal 0.64-inch thickness is only one selection dimension; the backing-plate ears and caliper retention arrangement must also match. For Wilwood Engineering, component selection forms part of matching a complete brake system to its application. Founded in 1977 by Bill Wood and based in Camarillo, California, the company designs and manufactures disc brake systems and a range of calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 150-D0975K
- Pad type: ProMatrix replacement brake pad set
- Pad profile: D975
- Quantity: 4 pads
- Position: Rear
- Nominal thickness (Wilwood specification): .64 inch
- Compatible rotor material: Steel, Iron
- Compound application: Street, autocross and track-day applications
- Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
- Factory bedded: No
- Published weight: 4.400 lb
- Wilwood dust rating: Low to Moderate
- Wilwood noise rating: Low
- Drawing thickness, inner / outer: .640 / .640 inch
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Fitment & Compatibility
The illustration establishes a rear profile reference, not complete model-year coverage for every GM 1500. Confirm the installed rear disc package and compare the removed pad before ordering for a specific truck or SUV.
Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference
For help checking this application, contact PMB Performance with the vehicle and installed brake details. Our team draws on over 20 years of experience with parts and brake fitment.
